Scanstrut SC102 Pole Mount
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

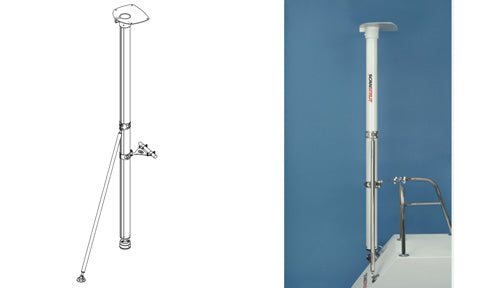

The Scanstrut SC102 Radar Pole Mount raises your radar clear of obstructions for the best possible signal, installing onto either the deck or transom of your boat. At 2.5m (8.3') it is the taller option in the range, recommended for transom mounting where extra height is needed, and it arrives as a complete kit for a quick, easy fit.
The 360-degree adjustable anodised aluminium base sits securely on sloping transoms or level decks, with two cable channels and a cover strip concealing the wiring. Two support modules give fore and aft and sideways support, and the pole is removable for racing or winter storage.
Made from marine-grade aluminium and protected by Scanstrut's four-step marine paint system, the SC102 is designed to fit radars from Raymarine, Garmin and B&G and to stay looking its best year after year.
PRODUCT DETAILS
- Pole mount raises radar above deck level for a clear scan
- Supplied with a 3" x 1.9M pole and 1200mm adjustable deck strut
- Adjustable base and strut allow the pole to be set vertical on any deck angle
- Fits a 25mm (1") rail as standard, with 32mm (1.25") clamps also available
- Marine-grade construction for permanent installation
- SC100 pole top plate (part 17103)
- 3" x 1.9M pole with 3" tube clamp and cover strip
- SC100 adjustable base
- 1200mm adjustable deck strut with strut base
- 25mm rail standoff
- Pole top and base fastening packs (M8 and M6 stainless steel bolts, washers, Nyloc nuts and nut covers)
- Thread lock
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Mount type | SC100 pole mount for radar |
Dimensions
| Pole | 3" pole, 1.9M long (ø63.80mm / 2.51") |
| Strut length (standard) | 1200mm (600mm and 1800mm also available) |
| Radar scanner width (max) | 164mm / 6.4" |
| Top plate size | 239.46mm (9.42") x 233mm (9.17") |
Fixing
| Top plate fixing holes | Diameter 9mm (0.35"), centres 233mm (9.17") x 84mm (3.30") |
| Adjustable base fixing | 3 x M8, 60mm (2.36") centres |
Compatibility
| Top plate part | 17103 (shared with SC101) |
| Rail clamp | To fit 25mm (1") rail as standard; 32mm (1.25") rail clamps also available |
