Scanstrut SC103 Pole Mount
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

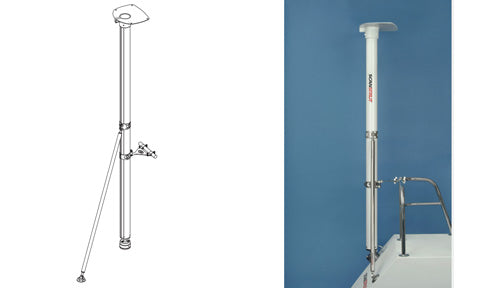

The Scanstrut SC103 Radar Pole Mount carries your radar clear of the deck for an unobstructed signal, fitting onto either the deck or transom of your boat. At 1.9m (6.4') it is the shorter height in the range, recommended for deck mounting, and it is the version configured to suit Furuno radars.
Supplied as a complete kit, it includes everything needed for a quick installation. The 360-degree adjustable anodised aluminium base seats neatly on sloping transoms or level decks, two cable channels and a cover strip keep wiring out of sight, and twin support modules brace the pole both fore and aft and sideways. The pole is removable for racing or winter storage.
Constructed from marine-grade aluminium and finished with Scanstrut's four-step marine paint system, the SC103 is built to fit Furuno radars and to withstand whatever the oceans throw at it.
PRODUCT DETAILS
- Pole mount raises radar above deck level for a clear scan
- Supplied with a 3" x 1.9M pole and 1200mm adjustable deck strut
- Adjustable base and strut allow the pole to be set vertical on any deck angle
- Fits a 25mm (1") rail as standard, with 32mm (1.25") clamps also available
- Marine-grade construction for permanent installation
- SC100 pole top plate (part 17101)
- 3" x 1.9M pole with 3" tube clamp and cover strip
- SC100 adjustable base
- 1200mm adjustable deck strut with strut base
- 25mm rail standoff
- Pole top and base fastening packs (M8 and M6 stainless steel bolts, washers, Nyloc nuts and nut covers)
- Thread lock
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Mount type | SC100 pole mount for radar |
Dimensions
| Pole | 3" pole, 1.9M long (ø63.80mm / 2.51") |
| Strut length (standard) | 1200mm (600mm and 1800mm also available) |
| Radar scanner width (max) | 164mm / 6.4" |
| Top plate size | 200.51mm (7.89") x 200.26mm (7.88") |
Fixing
| Top plate fixing hole centres | 141.42mm (5.57") and 159.81mm (6.29") |
| Adjustable base fixing | 3 x M8, 60mm (2.36") centres |
Compatibility
| Top plate part | 17101 (shared with SC104) |
| Rail clamp | To fit 25mm (1") rail as standard; 32mm (1.25") rail clamps also available |
