Scanstrut
Scanstrut SC104 Pole Mount
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

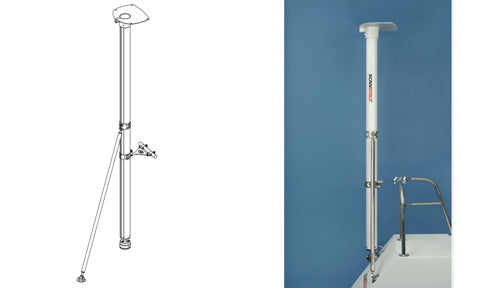

The Scanstrut SC104 Radar Pole Mount lifts your radar clear of obstructions for the strongest signal, installing onto either the deck or transom of your boat. At 2.5m (8.3') it is the taller option, recommended for transom mounting, and it is the version set up to suit Furuno radars.
Shipping as a complete kit, it provides everything needed for a straightforward installation. The 360-degree adjustable anodised aluminium base fits sloping transoms or level decks, two cable channels with a cover strip hide the wiring, and two support modules give fore and aft and sideways bracing. The pole can be removed for racing or winter storage.
Made from marine-grade aluminium and protected by Scanstrut's four-step marine paint system, the SC104 is designed for Furuno radars and engineered to keep looking its best season after season.
PRODUCT DETAILS
- Pole mount raises radar above deck level for a clear scan
- Supplied with a 3" x 1.9M pole and 1200mm adjustable deck strut
- Adjustable base and strut allow the pole to be set vertical on any deck angle
- Fits a 25mm (1") rail as standard, with 32mm (1.25") clamps also available
- Marine-grade construction for permanent installation
- SC100 pole top plate (part 17101)
- 3" x 1.9M pole with 3" tube clamp and cover strip
- SC100 adjustable base
- 1200mm adjustable deck strut with strut base
- 25mm rail standoff
- Pole top and base fastening packs (M8 and M6 stainless steel bolts, washers, Nyloc nuts and nut covers)
- Thread lock
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Mount type | SC100 pole mount for radar |
Dimensions
| Pole | 3" pole, 1.9M long (ø63.80mm / 2.51") |
| Strut length (standard) | 1200mm (600mm and 1800mm also available) |
| Radar scanner width (max) | 164mm / 6.4" |
| Top plate size | 200.51mm (7.89") x 200.26mm (7.88") |
Fixing
| Top plate fixing hole centres | 141.42mm (5.57") and 159.81mm (6.29") |
| Adjustable base fixing | 3 x M8, 60mm (2.36") centres |
Compatibility
| Top plate part | 17101 (shared with SC103) |
| Rail clamp | To fit 25mm (1") rail as standard; 32mm (1.25") rail clamps also available |
