Scanstrut
Scanstrut SC12 Mast Mount
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

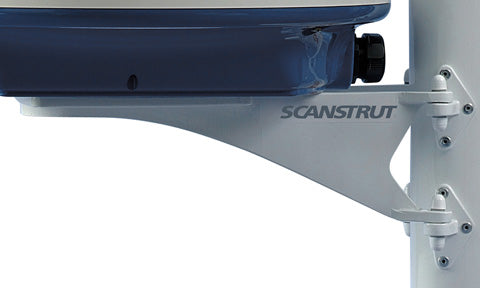

The SC12 is a radar mast mount that fixes a radome securely to a sailboat mast, keeping the scanner clear of rigging and freeing valuable deck and pushpit space. It is the original and first choice for boat owners worldwide for a clean, space-saving radar installation.
This model is sized for smaller radomes and ships with pre-drilled mounting holes so the radar fastens straight to the mount, with no drilling or additional brackets required on most installations.
Built from marine-grade aluminium and finished with Scanstrut's unique 4-step marine paint system, the SC12 stays looking its best year after year. It is compatible with radomes from Garmin, Lowrance, Raymarine, Simrad and Furuno.
PRODUCT DETAILS
- Universal mast mount attaches with four swivel feet to suit a variety of mast profiles
- Suits aluminium masts with a minimum width of 77mm (3") and wall thickness of 2mm to 5mm
- Strong 12-point rivet fixing
- Antenna extends the minimum distance from the front of the mast
- Supplied with a safety wire kit that independently retains the radar
- Optional 50100 adapter kit available for Z-Spars, Eurospars and Isomat masts
- Accepts the SC24 radar guard for added protection
- Mast mount with four swivel feet
- Stainless steel safety lanyard kit (pack code 70026) with lacing eye
- 12 x 4.8 x 16mm rivets and 2 x 4.8 x 12mm rivets
- 4 x M6 x 40mm stainless steel bolts with M6 Nyloc nuts, washers and nut covers
- Cable grommet
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Mount type | Mast mount for radar |
| Safety feature | Supplied with a stainless steel safety lanyard that independently retains the radar |
Dimensions
| Overall height | 335mm (13.19") |
| Overall width | 192.14mm (7.56") |
| Projection from mast | 230mm (9") |
Fixing
| Minimum mast width | 77mm (3") - no maximum mast width |
| Mast wall thickness | 2mm (5/64") to 5mm (3/16") |
| Foot fixing pad | 140mm (5.51") square to 160mm (6.3") square |
| Rivet drill size | Diameter 4.8mm (3/16") |
| Cable hole saw size | Diameter 23mm (7/8") |
Materials
| Mast material | Aluminium masts (50100 adapter kit required for Z-Spars, Eurospars and Isomat masts) |
Compatibility
| Radar guards | Compatible with SC24 radar guard |
| Mast adapter | 50100 mast mount adapter kit available for Z-Spars, Eurospars and Isomat masts |
