Scanstrut SC20 Mast Mount
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

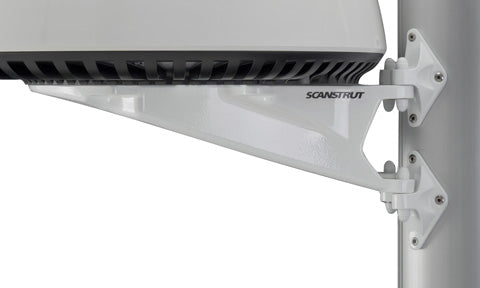

The SC20 is the world's most popular radar mast mount, fixing a radome securely to a sailboat mast so the scanner sits clear of the rigging while deck and pushpit space stays free. It is the original and first choice for boat owners worldwide for a clean, space-saving radar installation.
This model suits larger radomes and arrives with pre-drilled mounting holes, allowing the radar to fasten straight to the mount without extra brackets on most installations.
Built from marine-grade aluminium and finished with Scanstrut's unique 4-step marine paint system, the SC20 keeps its appearance whatever the oceans throw at it. It is compatible with radomes from Garmin, Lowrance, Raymarine, Simrad and Furuno.
PRODUCT DETAILS
- The world's most popular mast mount
- Universal mounting attaches with four swivel feet to suit a variety of mast profiles
- Suits aluminium masts with a minimum width of 65mm (2.6") and wall thickness of 2mm to 5mm
- Strong 12-point fixing using high-quality Monel rivets
- Compact mounting holds the antenna the minimum distance from the front of the mast
- Supplied with a safety wire kit that independently retains the radar
- Marine-grade aluminium with a 4-step marine paint system
- Mast mount with four swivel feet
- Stainless steel safety lanyard kit (pack code 70026) with lacing eye
- 12 x 4.8 x 16mm rivets and 2 x 4.8 x 12mm rivets
- 4 x M6 x 45mm stainless steel bolts with M6 Nyloc nuts, washers and nut covers
- Cable grommet
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Mount type | Mast mount for radar |
| Safety feature | Supplied with a stainless steel safety lanyard that independently retains the radar |
Dimensions
| Overall height | 395mm (15.55") |
| Overall width | 263mm (10.35") |
| Projection from mast | 232mm (9.13") |
Fixing
| Minimum mast width | 65mm (2.6") - no maximum mast width |
| Mast wall thickness | 2mm (5/64") to 5mm (3/16") |
| Foot fixing hole centres | 263mm (10.4") x 233mm (9.17") |
| Foot fixing hole diameter | 9.5mm (0.37") |
| Rivet drill size | Diameter 4.8mm (3/16") |
| Cable hole saw size | Diameter 23mm (7/8") |
Materials
| Construction | Marine-grade aluminium with a 4-step marine paint system |
| Mast material | Aluminium masts (50100 adapter kit required for Z-Spars, Eurospars and Isomat masts) |
Compatibility
| Compatible radar (B&G) | 3G/4G, HALO20, HALO20+ |
| Compatible radar (Simrad) | 3G/4G, DX45, HALO20, HALO20+ |
| Compatible radar (Lowrance) | 3G/4G, HALO20, HALO20+ |
| Compatible radar (Garmin) | Fantom 18, GMR18HD / 18xHD / 18HD+, GMR40 |
| Compatible radar (Raymarine) | 37STV, Quantum, Quantum 2 |
| Compatible satcom / antennas | KVH TracPhone V3-HTS, TracVision M2/M3/TV3/V3; Intellian FB150/FB250/FB250R/i3; Sea-Tel Coastal 14; Humminbird HB 2124 CHIRP |
| Mast adapter | 50100 mast mount adapter kit available for Z-Spars, Eurospars and Isomat masts |
