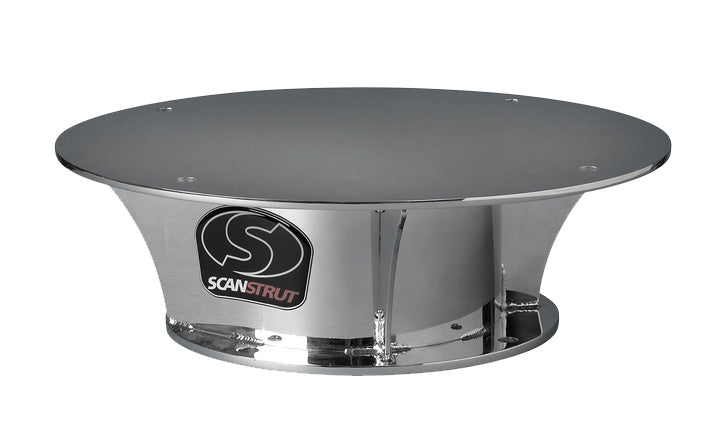

Scanstrut SC80 Satcom Antenna Mount
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Scanstrut SC80 raises your satcom antenna clear of obstructions on a heavy-duty stainless base, giving the dome a clean line of sight while delivering a premium, high-end look on the foredeck or radar arch.
It is engineered for some of the world's leading satcom technologies, with a unique cable gland system that routes up to five cables through a single KDL gland plate to achieve an IP68 rating for a fully sealed, weatherproof connection.
Manufactured from marine-grade 316 stainless steel and mirror-polished throughout, the SC80 is built to resist the harshest marine conditions.
PRODUCT DETAILS
- Raises a satcom dome above deck clutter for a clear satellite view
- Sealed KDL cable entry gland keeps the deck watertight
- Polished 316 stainless steel construction
- Heavy-duty mount for larger domes
- SC80 stainless steel mount
- Foam seal
- KDL cable entry kit (5x 101823 grommets, 4x 101824 grommets)
- 4x M5x25mm socket cap screws
- 4x shake-proof washers
- 8x M10 nylon washers
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Mount type | Stainless steel satcom antenna mount |
Dimensions
| Overall height | 370mm (14.5") |
| Base footprint | 216mm x 205mm (8.50" x 8.07") |
Fixing
| Base hole centres | 230mm x 145mm (9.01" x 5.71") |
| Base hole diameter | 11.0mm (0.43") |
| Cable hole-saw size | 50-60mm (2") |
| Deck fasteners | 4x M10 x 25mm+ (not supplied) |
Materials
| Material | 5mm stainless steel 316 |
| Finish | Polished |
