Scanstrut SPH-3I-W Helm Pod
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

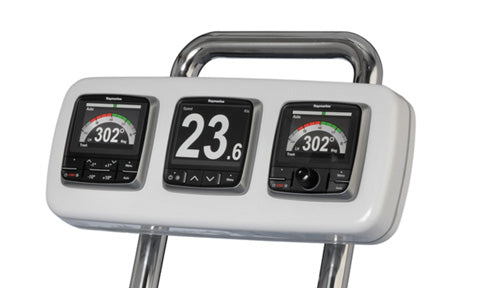

The SPH-3I-W HelmPod is the tidy way to bring up to three standard nav instruments and an autopilot keypad together at the helm of your sailing yacht. A stainless saddle system supports the tubing for a secure, rigid fit onto any pedestal, with a universal helm fixing that suits a wide range of cockpit configurations.
A high tear strength silicone seal at the cable entry keeps water out, and the same silicone is used throughout for excellent resistance to heat and UV. The pod is supplied uncut, allowing the instrument apertures to be cut to match the displays you are fitting.
PRODUCT DETAILS
- Helm pod that houses up to three standard 110mm marine instruments
- 7 degree tilt for an ergonomic viewing angle at the helm
- Mounts to a pedestal guard from 7 to 12 inch tube centres
- Fits stainless steel pedestal guard tube 25 to 33.7mm diameter
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Pod type | Helm pod for pedestal guard mounting |
| Tilt angle | 7 degrees |
Compatibility
| Display capacity | Up to 3 standard 110mm instruments |
Dimensions
| Overall dimensions | 432 x 181 mm (17 x 7.1 in) |
| Maximum usable face | 390 x 140 mm (15.35 x 5.5 in) |
| Maximum cut-out area | 368 x 118 mm (14.5 x 4.65 in) |
Fixing
| Pedestal guard fitment | Fits pedestal guards from 177.8mm (7 in) to 304.8mm (12 in) tube centres; will fit up to 406mm (16 in) centres but no drilling guide provided |
| Pedestal guard tube | Stainless steel tube 25 to 33.7mm (1 to 1.33 in) diameter, 1.5mm wall minimum |
