Scanstrut SPR-1i-AM Arm Mounted Pod
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

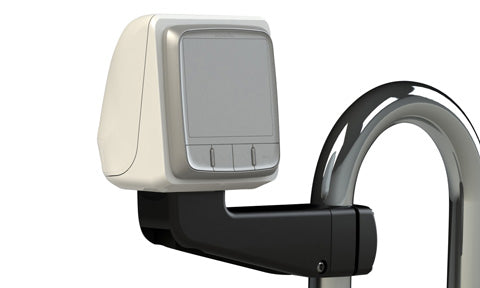

The SPR-1I-AM ArmPod carries a single standard nav instrument on a multi-adjustable aluminium clamp, letting you set the position and angle to bring the instrument right where you need it. It fits standard and curved rails from 25mm to 33.7mm diameter, ideal where helm space is limited.
Waterproof internal cable routing runs the cables through the bottom of the pod, through the clamp and into the rail for the cleanest possible installation. A high tear strength silicone seal keeps water out while resisting heat and UV, and the design allows a quick, safe install and easy servicing.
PRODUCT DETAILS
- Arm-mounted pod for a single standard 110mm instrument
- Articulating arm rotates and sets the pod for angled rails
- Clamps to rails from 25 to 33.7mm diameter
- Compact 155mm diameter housing
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Pod type | Arm-mounted instrument pod |
Compatibility
| Display capacity | Houses 1 standard 110mm instrument |
Dimensions
| Overall dimensions | Ø155 mm pod, 240mm projection (6.1 in dia, 9.5 in projection) |
| Instrument aperture | Ø91 mm (3.6 in) |
Fixing
| Rail clamp diameter | Fits rails 25 to 33.7mm (1 to 1.33 in) diameter |
| Adjustment | Arm can be rotated and set for angled rails; pod rotates to suit |
