Scanstrut

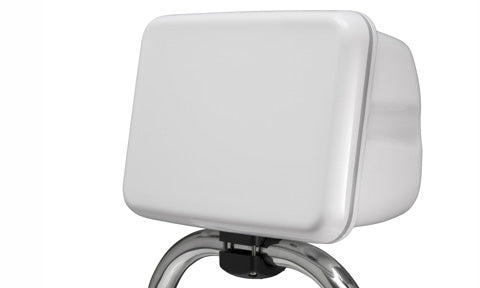

Scanstrut SPR-8-RM Rail Mounted Pod
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The SPR-8-RM RailPod carries a display of up to 8 inches on a standard or curved guard rail, fitting rails from 25mm to 33.7mm diameter. It is a strong choice for installations where helm space is limited and a rail gives the best position and viewing angle for the screen.
Cables route internally through the clamp and onto the rail for a clean, protected run, and a high tear strength silicone seal keeps water out while resisting heat and UV. The viewing angle is set on installation, the pod is supplied uncut, and the design allows a quick, safe install and easy servicing.
PRODUCT DETAILS
- Rail-mounted pod for displays up to 8 inches
- Clamps to rails from 25 to 33.7mm diameter
- Mounts to a rail at any angle
- Sealed pod front and back protect the display
- Pod front
- Pod back
- Bracing plate
- Rail clamp components
- Stainless steel fixings
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Pod type | Rail-mounted display pod |
Compatibility
| Display capacity | Houses a display up to 8 inch |
Dimensions
| Overall dimensions | 324 x 228 mm (12.75 x 8.97 in) |
| Maximum usable face | 289 x 190 mm (11.4 x 7.5 in) |
| Maximum cut-out area | 267 x 167 mm (10.5 x 6.6 in) |
Fixing
| Rail clamp diameter | Fits rails 25 to 33.7mm (1 to 1.33 in) diameter |
| Rail orientation | Rail can be at any angle |
