Scanstrut
Scanstrut Ultra 15W Qi2 Magnetic Waterproof Wireless Charger
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

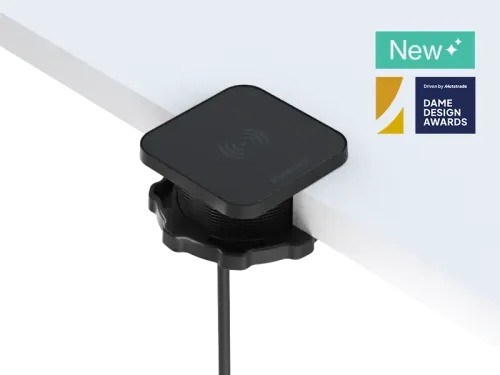

The Scanstrut Ultra is the first marine Qi2-certified wireless charger, delivering up to 15W of fast, reliable charging with a magnetic ring that aligns and holds your phone perfectly in place. IPX6 waterproofing front and back means it shrugs off spray and washdown, while the toughened glass surface sits flush in the mounting area for a clean, near-invisible finish.
Wired for 12/24V systems with a 10-32V DC input, it draws under 0.5W on standby and installs into a 51mm cutout. The result is a discreet, premium charging point that keeps devices topped up wherever you are aboard.
PRODUCT DETAILS
- First marine Qi2-certified wireless charger, up to 15W
- Magnetic alignment ring holds the phone securely
- IPX6 waterproof front and back for spray and washdown
- Flush toughened glass surface for a near-invisible finish
- Wired for 12/24V systems (10-32V DC input)
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Output Power | 15W (Qi2) |
| Input Voltage | 10-32V DC (12/24V system) |
| Input Current (max) | 2A |
| Standby Draw | < 0.5W |
| Waterproof Rating | IPX6 front and back |
| Certification | Qi2, CE, ROHS, FCC, C-Tick, WEEE, UN ECE R10, PSE |
Dimensions
| Bezel | 60.5mm (2.4") square |
| Bezel Height | 5.7mm (0.2") |
| Flying Lead | 280mm (11") |
Fixing
| Cutout Diameter | 51mm (2") |
| Lock Ring Diameter | 72.6mm (2.85") |
| Mounting Thickness | 6mm to 20mm (0.23" to 0.79") |
| Min Cavity Space | 43mm (1.7") |
No frequently asked questions for this product.
