Scanstrut

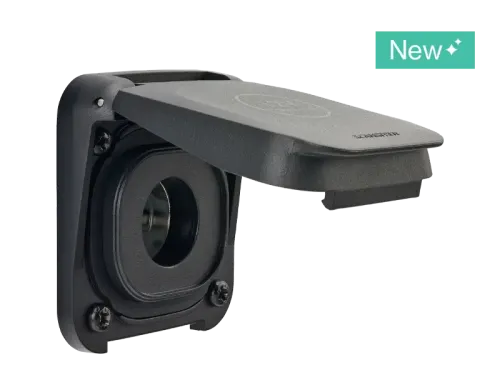

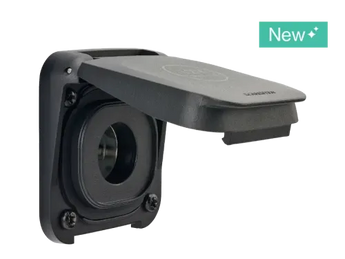

Scanstrut Ventura Series 12V Power Outlet
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Scanstrut Ventura Series 12V Power Outlet brings a tough, waterproof 12V socket to the helm, cockpit or cabin. Rated IP68 and IP69K at the front with the lid closed, it keeps power on tap for chartplotters, pumps and accessories while standing up to spray, rain and washdown.
Designed for 12/24V systems with a 10A capacity and 150W output, it fits neatly into a single 32mm cutout with four panhead fixings. The hinged lid seals the contacts when not in use and the low 0.01W standby draw keeps battery drain to a minimum.
PRODUCT DETAILS
- Waterproof IP68 / IP69K at the front with lid closed
- 12/24V system, 10A capacity and 150W output
- Hinged lid seals the contacts when not in use
- Low 0.01W standby draw
- Fits a single 32mm cutout with four panhead fixings
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Input Voltage | 10-15V DC (12/24V system) |
| Input Current (max) | 10A |
| Output (max) | 150W |
| Waterproof Rating | IP68, IP69K front only with lid closed |
| Standby Draw | 0.01W |
| Certification | CE, ROHS, WEEE |
| Connection | 6.3 x 0.8mm spade connectors |
Fixing
| Cutout | 32mm hole plus 4x No.6 panhead pilot holes |
| Fixing Centres | 37.5mm |
No frequently asked questions for this product.
