Scanstrut

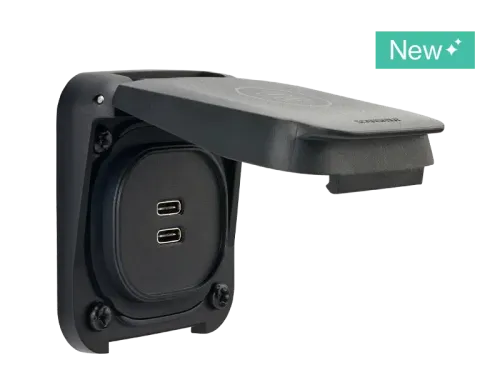

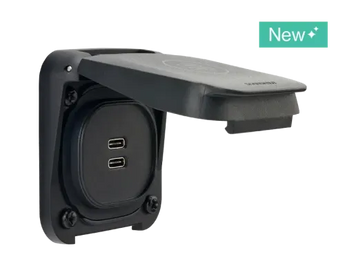

Scanstrut Ventura Series Dual USB-C Socket
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Scanstrut Ventura Series Dual USB-C Socket delivers fast, reliable USB-C charging at the helm, cockpit or cabin from two independent outputs. Built for 12/24V systems with a 10-32V DC input, it keeps phones, tablets and accessories topped up wherever you are aboard.
Rated IP68 and IP69K at the front with the lid closed, each USB-C port supports Power Delivery profiles up to 20V 3A. It fits a single 32mm cutout and the hinged lid seals the ports against spray and washdown when not in use.
PRODUCT DETAILS
- Two independent USB-C Power Delivery outputs
- 10-32V DC input for 12/24V systems
- USB-C PD up to 20V 3A on 24V systems
- Waterproof IP68 / IP69K at the front with lid closed
- Fits a single 32mm cutout
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Input Voltage | 10-32V DC (12/24V system) |
| Input Current (max) | 6A |
| Output Type C (12V system) | 5V-3A, 9V-3A, 12V-3A max |
| Output Type C (24V system) | 5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-3A max |
| Waterproof Rating | IP68, IP69K front only with lid closed |
| Certification | CE, ROHS, FCC, C-Tick, WEEE |
Fixing
| Fixing Centres | 37.5mm |
No frequently asked questions for this product.
