Scanstrut

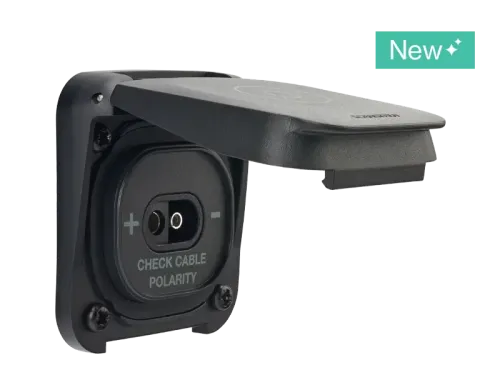

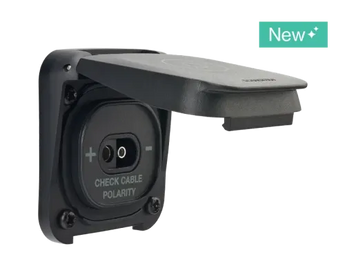

Scanstrut Ventura Series SAE Solar Connection
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Scanstrut Ventura Series SAE Solar Connection provides a tough, waterproof deck entry for solar panels and chargers fitted with the popular SAE two-pin connector. It keeps a secure, weatherproof junction at the helm or deck while routing solar power cleanly into the boat.
Rated IP68 and IP69K at the front with the lid closed, it delivers up to 240W from a 12V input and fits a single 32mm cutout. The hinged lid seals the connector against spray and washdown when it is not in use.
PRODUCT DETAILS
- SAE two-pin connector for solar panels and chargers
- Up to 240W from a 12V input
- Waterproof IP68 / IP69K at the front with lid closed
- Hinged lid seals the connector when not in use
- Fits a single 32mm cutout
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Connection Type | SAE |
| Max Power Delivery | 240W (12V input) |
| Waterproof Rating | IP68, IP69K front only when lid closed |
| Certification | CE, ROHS |
Fixing
| Fixing Centres | 37.5mm |
No frequently asked questions for this product.
