Scanstrut Ventura Series XT60 Solar Connection
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

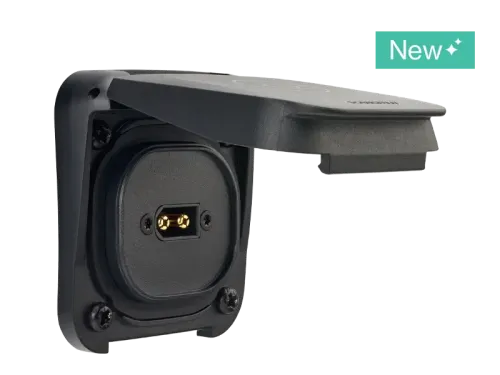

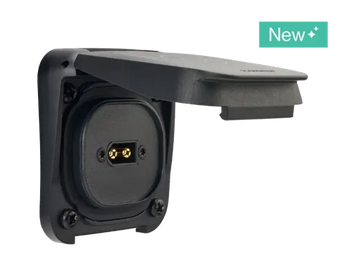

The Scanstrut Ventura Series XT60 Solar Connection provides a tough, waterproof deck entry for solar panels and chargers using the widely-fitted XT60 connector. It keeps a secure, weatherproof junction at the helm or deck while routing solar power neatly into the boat.
Built around an Amass XT60 waterproof connector rated up to 30A continuous and 500V DC, it carries an IP68 and IP69K rating at the front with the lid closed and fits a single 32mm cutout. The hinged lid seals the connector when not in use.
PRODUCT DETAILS
- Amass XT60 waterproof connector for solar leads
- Rated 30A continuous and 500V DC
- Waterproof IP68 / IP69K at the front with lid closed
- Hinged lid seals the connector when not in use
- Fits a single 32mm cutout
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Connection Type | Amass XT60EW-M male waterproof type |
| Compatible Connectors | XT60W-F female waterproof (IP65 in use); XT60-F standard female |
| Connector Max Current | 30A continuous (60A instantaneous) |
| Connector Max Voltage | Rated 500V DC |
| Cable Size | 4mm2 / 12AWG |
| Cable Length | 150mm (6") |
| Waterproof Rating | IP68, IP69K front only when lid closed |
Fixing
| Fixing Centres | 37.5mm |
