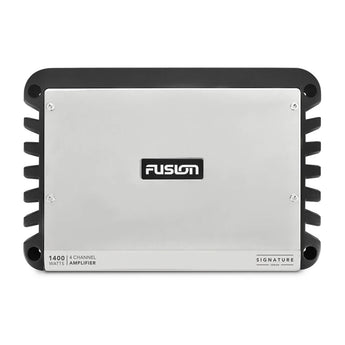

Fusion Signature Series 4 Channel 1400-Watt Marine Amplifier
Manufacturer Part Number:
010-01969-00
Manufacturer Part Number:
010-01969-00
EXPERIENCE THE POWER OF MUSIC
Purpose-built for the marine environment, the Signature Series marine amplifiers feature some of the most impressive environmental protection available — delivering a Signature performance out on the water.
Class-D amplifier design delivers higher efficiency and greater output.
Connect up to two speakers per channel at 2 ohms, or bridge two channels at 4 ohms for increased power.
Conformal coated PCBs provide extra protection from the marine elements.
Rigid aluminium alloy heat sink is moulded for greater dissipation of heat.
The amplifiers are available in monoblock, 4-channel, 5-channel, 6-channel and 8-channel configurations.
Engineered to last season after season, the amplifiers include a supported 3-year warranty.
General |
|
| Physical dimensions (LxWxH) | Monoblock/ and 4/5 channels: 11.81" x 8.27" x 1.97" (300 x 210 x 50 mm) 6/8 channels: 16.54" x 8.27" x 2.24" (420 x 210 x 57 mm) |
| Amplifier class | D |
| Peak power (Watts) | Monoblock: 2250 W 4 channel: 1400 W 5 channel: 1600 W 6 channel: 1500 W 8 channel: 2000 W |
| Total rated power output - 4 Ohm (Watts) | Monoblock: 500 W RMS x 1 @ 14.4 V input - 4 Ohm < 1% THD 4 channel: 150 W RMS x 4 @ 14.4 V input - 4 Ohm < 1% THD 5 channel: 80 W RMS x 4 + 250 W RMS x 1 @ 14.4 V input - 4 Ohm < 1% THD 6 channel: 100 W RMS x 6 @ 14.4 V input - 4 Ohm < 1% THD 8 channel: 100 W RMS x 8 @ 14.4 V input - 4 Ohm < 1% THD |
| Total rated power output - 2 Ohm (Watts) | Monoblock: 850 W RMS x 1 @ 14.4 V input - 2 Ohm < 1% THD 4 channel: 220 W RMS x 4 @ 14.4 V input - 2 Ohm < 1% THD 5 channel: 130 W RMS x 4 + 330 W RMS x 1 @ 14.4 V input - 2 Ohm < 1% THD 6 channel: 140 W RMS x 6 @ 14.4 V input - 2 Ohm < 1% THD 8 channel: 140 W RMS x 8 @ 14.4 V input - 2 Ohm < 1% THD |
| Total rated power output (Watts) | Monoblock: 1100 W RMS x 1 @ 14.4 V input - 1 Ohm < 1% THD 4 channel: 440 W RMS x 2 @ 14.4 V input - 4 Ohm Bridged < 1% THD 5 channel: 250 W RMS x 2 @ 14.4 V input - 4 Ohm Bridged < 1% THD + 250 W RMS x 1 @ 14.4 V input - 4 Ohm < 1% THD 6 channel: 280 W RMS x 3 @ 14.4 V input - 4 Ohm Bridged < 1% THD 8 channel: 280 W RMS x 4 @ 14.4 V input - 4 Ohm Bridged < 1% THD |
| Frequency response | Monoblock Amplifier: 10 Hz - 320 Hz (-3 dB, dB @ 4 Ohm rated power) - subwoofer only 4/5 channels: 10 Hz - 50 kHz (-3dB, dB @ 4 Ohm rated power) 6/8 channels: 10 Hz - 40 kHz (-3dB, dB @ 4 Ohm rated power) |
| Input sensitivity | 0.3 V - 8 V RMS (user adjustable) |
| Input impedance | Monoblock/5 channel: 4k Ohm nominal 4/6/8 channels: 7k Ohm nominal |
| High-pass/low-pass full range filter | Yes (user selectable) |
| HP variable crossover frequency | Monoblock: 10 Hz - 80 Hz (subwoofer) 4/5/6/8 channels: 32 Hz - 320 Hz |
| LP variable crossover frequency | Monoblock: 32 Hz - 320 Hz (subwoofer) 4/5/6/8 channels: 32 Hz - 320 Hz |
| Bass boost | 0 dB - 9 dB, user adjustable (zone 3 only) |
| Operating voltage | 10.8 V - 16 V DC |
| Current consumption (StandBy) | < 1 mA @ 14.4 V input |
| Current consumption (Idle) | < 2.5 A @ 14.4 V input |
| Current consumption (Max) | Monoblock: 120 A 4/5 channels: 80 A 6 channel: 75 A 8 channel: 100 A |
| Fuse rating | Monoblock/6 channel: 3 x 40 A ATC blade-type (SAE J1171 compliant) 4/5 channels: 2 x 40 A ATC blade-type (SAE J1171 compliant) 8 channel: 4 x 40 A ATC blade-type (SAE J1171 compliant) |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Warranty | 3 years |
