Simrad NSO EVO3S 24 Inch MFD System Pack
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

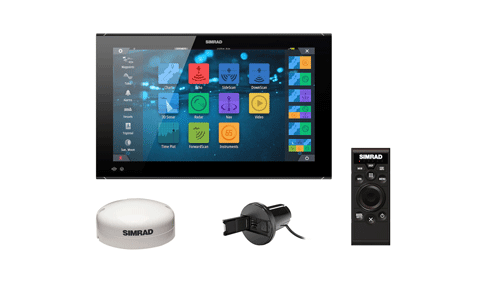

The Simrad NSO evo3S 24-inch System Pack contains everything needed to start a large-format glass-helm system, pairing the 1200-nit Full HD SolarMAX IPS touchscreen with a GPS antenna, an OP50 keypad controller and an MI10 card reader. Behind the glass an iMX8 six-core processor delivers up to twice the CPU performance of its predecessor for smooth transitions and instant access to charts, radar and sonar, with up to six panels in a split-screen layout.
\nThe OP50 adds keypad control of up to six separate displays, ideal for a multi-display helm or rough conditions. Built-in wireless links the system to mobile devices for remote control and easy software updates, while wired Ethernet, NMEA 2000 and J1939 networking open near-limitless integration with radar, sonar and engine data. An external or networked sonar module is required for echosounder.
PRODUCT DETAILS
- Complete system pack built on the NSO evo3S 24-inch MFD
- iMX 8 integrated six-core processor for category-leading response times
- Ultra-bright 24-inch Full HD SolarMAX IPS touchscreen, 1200 nits
- Includes GPS antenna, OP50 keypad controller and MI10 chart card reader
- Built-in Wi-Fi, Bluetooth, three Ethernet ports and NMEA 2000
- Combine up to six panels in a split-screen layout
- Pre-loaded C-MAP coastal charting out of the box (AMER region)
- Integrates with radar, CHIRP sonar, autopilot and third-party systems
- NSO evo3S 24" display unit
- GPS antenna
- OP50 keypad controller
- MI10 chart card reader
- Display suncover and bezels
- Power, Ethernet adapter and NMEA cables
- NMEA 2000 starter kit
- Panel mounting kit
- Documentation pack
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Pack Includes | NSO evo3S 24" MFD, GPS antenna, OP50 keypad controller, MI10 chart card reader |
| GPS | GS25 / Point-1 GPS antenna included |
| Cartography Included | Pre-loaded C-MAP coastal charts (AMER region); world basemap |
Display
| Screen Size | 24 inches |
| Resolution | 1920 x 1080 (Full HD) |
| Display Type | SolarMAX IPS, full multi-touch |
| Brightness | 1200 nits |
| Viewing Angles | 80 degrees top/bottom, 80 degrees left/right |
Electrical
| Supply Voltage | 10 - 32 V DC |
| Power Consumption (max) | 80 W (+/- 4 W) |
| Recommended Fuse Rating | 10 A at 12 V DC |
Connectivity
| Ethernet | 3 x 100 Mbit/s ports (RJ45) |
| NMEA 2000 | 1 x Micro-C port, 1 LEN |
| Wi-Fi | Internal 802.11b/g/n |
| Bluetooth | Internal |
| Card Reader | 1 microSD slot (max 32 GB); MI10 USB reader included with 2 microSD slots |
Environment
| Operating Temperature | -15 C to +55 C |
| Waterproof Rating | IPX6 on the front when panel mounted (rear not waterproof) |
Physical
| Display Dimensions (W x H x D) | 625.1 x 386 x 83 mm (with bracket 648.9 x 388.5 x 212.5 mm) |
| Display Weight | 7.8 kg |
Approvals
| Compliance | CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 |
