Simrad
Simrad GO9 XSE MFD ROW GPS Wi-Fi 9 Inch Display No Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

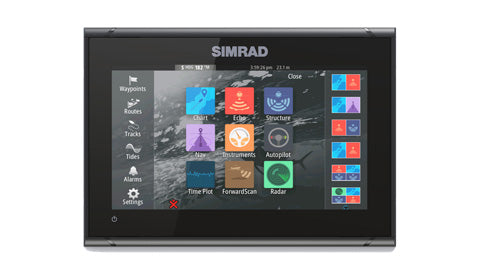

The Simrad GO9 XSE is a 9-inch multi-touch chartplotter and radar display for sportboats, cruisers and centre consoles. Its super-bright widescreen reads clearly in sunlight, with a built-in GPS receiver, echosounder, Wi-Fi and NMEA 2000 networking, plus plug-and-play support for Simrad Broadband and HALO radar.
Supplied as the display unit with no transducer, ready to pair with the XSonic transducer of your choice. Wi-Fi keeps charts current and mirrors the screen to a phone or tablet, while NMEA 2000 connects engine data, sensors, autopilot and FUSION audio for a fully connected helm.
PRODUCT DETAILS
- 9-inch sunlight-viewable widescreen display with 1200-nit LED backlight
- Simple, tablet-style multi-touch operation
- Built-in 10 Hz GPS receiver for accurate positioning
- Integrated CHIRP, DownScan and ForwardScan sonar (add a compatible transducer)
- Compatible with Broadband 3G/4G and HALO dome radar
- Built-in Wi-Fi for app control, software updates and chart downloads
- NMEA 2000 connectivity for engines, sensors and autopilot
- Supplied without a transducer
- GO9 XSE display unit
- Gimbal bracket and knobs
- Sun cover
- Power cable
- Dash mount kit
- Bezel
- Documentation
No exploded diagram available for this product.
No compatible products found.
GPS
| Receiver | Internal, 32-channel |
| Update Rate | 10 Hz |
| Corrections | WAAS, EGNOS, MSAS, GLONASS |
| Position Accuracy | 3 m horizontal |
Display
| Screen Size | 9" widescreen |
| Resolution | 800 x 480 |
| Backlight | LED, white |
| Brightness | 1200 nits |
| Viewing Angles | 80° top/bottom, 80° left/right |
| Touchscreen | Multi-touch |
Environment
| Waterproof Rating | IPX6 and IPX7 |
| Operating Temperature | -15°C to +55°C |
| Storage Temperature | -20°C to +60°C |
Connectivity
| NMEA 2000 | 1 x Micro-C port (1 LEN) |
| Ethernet | 1 x 5-pin yellow connector (radar and Sirius, USA only) |
| Wi-Fi | Built-in |
| Bluetooth | Built-in |
| Sonar Connector | Single 9-pin XSonic |
| Card Reader | 2 x microSD (max 32GB each) |
Electrical
| Supply Voltage | 10 to 17 V DC |
| Power Consumption (max) | 20 W |
| Power Consumption (typical) | 12 W |
| Recommended Fuse | 3 A |
General
| Sonar Support | Integrated CHIRP, DownScan and ForwardScan |
| Radar Compatibility | Broadband 3G/4G and HALO dome radar |
| Cartography | C-MAP and Navionics compatible |
| Autopilot | Compatible with Simrad NAC autopilots (SteadySteer) |
| Warranty | 2 years |
Physical
| Dimensions (W x H x D) | 243 x 171 x 83 mm (no bracket) |
| Weight | 1.315 kg |
| Mounting | Bracket or panel mount |
