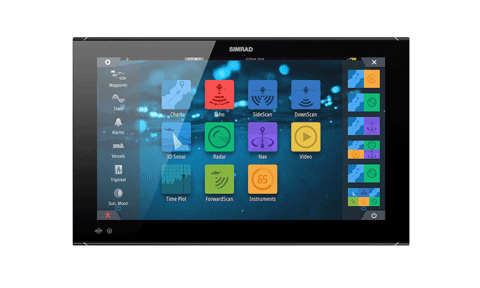

Simrad NSO EVO3S 24 Inch MFD
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Simrad NSO evo3S 24-inch display is the largest in the family, built for indoor or covered helms where a commanding view matters. An iMX8 six-core processor drives up to twice the CPU performance of its predecessor for smooth transitions and instant access to charts, radar and sonar, while the 1200-nit Full HD SolarMAX IPS touchscreen stays clear through polarised sunglasses with wide viewing angles. Combine up to six panels in a split-screen layout and switch between custom helm layouts in an instant.
\nBuilt-in wireless links the display to mobile devices for remote viewing and easy software updates over any internet hotspot. Wired Ethernet, NMEA 2000 and J1939 networking open near-limitless integration, from vessel-wide display systems to radar, sonar and engine data. As a black-box-style MFD it needs an external GPS for position and an external or networked sonar module for echosounder.
PRODUCT DETAILS
- iMX 8 integrated six-core processor for category-leading response times
- Ultra-bright 24-inch Full HD (1920 x 1080) SolarMAX IPS touchscreen, 1200 nits
- Wide 80 degree viewing angles, readable through polarised sunglasses
- Combine up to six panels in a split-screen layout
- Built-in Wi-Fi (802.11b/g/n), Bluetooth, three Ethernet ports and NMEA 2000
- Pre-loaded C-MAP coastal charting out of the box (AMER region)
- Low-profile glass-helm styling for panel or bracket mounting
- Integrates with radar, CHIRP sonar, autopilot and a wide range of third-party systems
- NSO evo3S 24" display unit
- Suncover
- Bezels (1 set black, 1 set silver)
- Power cable and connector block
- RJ45 to 5-pin Ethernet adapter cable
- NMEA 0183 connector block
- Cable retainer kit
- Panel mounting kit
- Documentation pack
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Screen Size | 24 inches |
| Resolution | 1920 x 1080 (Full HD) |
| Display Type | SolarMAX IPS, full multi-touch |
| Brightness | 1200 nits |
| Viewing Angles | 80 degrees top/bottom, 80 degrees left/right |
| Backlight Colour | White |
Electrical
| Supply Voltage | 10 - 32 V DC |
| Power Consumption (max) | 80 W (+/- 4 W) |
| Recommended Fuse Rating | 10 A at 12 V DC |
Connectivity
| Ethernet | 3 x 100 Mbit/s ports (RJ45) |
| NMEA 2000 | 1 x Micro-C port, 1 LEN |
| NMEA 0183 | 4 ports |
| Wi-Fi | Internal 802.11b/g/n |
| Bluetooth | Internal |
| Video | 2 x composite video (BNC) in, 1 x HDMI in (1080p, HDCP 1.4), 1 x HDMI out (1080p) |
| USB | 3 x USB-A |
| Card Reader | 1 microSD slot (max 32 GB); optional MI10 USB reader with 2 microSD slots |
General
| Internal Storage | 16 GB |
| GPS | External GPS required |
| Sonar | External echosounder module or networked MFD required |
| Cartography Included | Pre-loaded C-MAP coastal charts (AMER region); world basemap |
| Waypoints / Routes / Tracks | 6000 waypoints, 500 routes (100 points each), 50 tracks (12,000 points) |
Environment
| Operating Temperature | -15 C to +55 C |
| Storage Temperature | -20 C to +60 C |
| Waterproof Rating | IPX6 on the front when panel mounted (rear not waterproof) |
Physical
| Dimensions (W x H x D) | 625.1 x 386 x 83 mm (with bracket 648.9 x 388.5 x 212.5 mm) |
| Weight | 7.8 kg |
| Mounting | Panel or bracket mount |
| Compass Safe Distance | 50 cm |
Approvals
| Compliance | CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002, EN 300 440-2 V1.4.1 |
