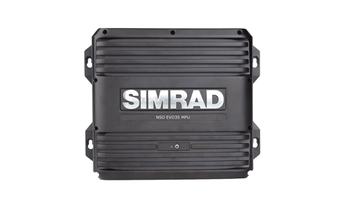

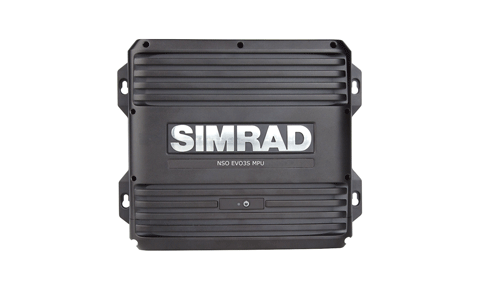

Simrad NSO EVO3S MPU
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
Customize and build your preferred system
Build a tailored, multi-display system that is perfect for you and your boat with the modular NSO evo3S system. The NSO evo3S marine processor is a compact ‘black box’ solution containing two Quad Core processors and the connectivity options needed to integrate and expand your system vessel-wide. Customize it the way you want: add two touchscreen or keypad monitors in your choice of size, with each functioning as a separate multifunction display; connect with a wide range of Simrad and third party accessories from charting, radar and sonar, to autopilot and on-board entertainment, for complete system control from every networked display on board.
PRODUCT DETAILS
- Black-box marine processor for a fully customised glass-helm system
- Dual iMX8 Quad Max processors for fast, smooth multi-display operation
- Drives up to two independent monitors via two HDMI outputs
- Supports Simrad MO-series touch monitors, single or dual touchscreen
- Three Ethernet ports (two with PoE), NMEA 2000, two NMEA 0183 and two RS422 ports
- Two composite video inputs and a 32 GB SD card slot
- Compact ABS housing for flexible bracketless mounting
- Integrates with radar, CHIRP sonar, autopilot and a wide range of third-party systems
- NSO evo3S Marine Processor Unit (MPU)
- MPU power cable, 2 m
- Micro-C power cable, 1.3 m
- Micro-C drop cable (male-female), 1.8 m
- Micro-C T-connectors (x3)
- Micro-C terminators, 120 ohm (male and female)
- NMEA 0183 serial cable, 8-wire, 2 m
- Ethernet adaptor, 5-pin female to RJ45 male
- Installation kit (cable retainers, cable ties, pan-head screws)
- Documentation pack
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Processors | Dual iMX8 Quad Max |
| GPS | External GPS required (position via NMEA 2000) |
| Sonar | External echosounder module or networked MFD required |
Display
| Monitor Support | Up to 2 independent monitors via 2 HDMI outputs; Simrad MO-series touch monitors supported |
| Max Output Resolution | 1920 x 1200 (WUXGA) per HDMI port |
Electrical
| Supply Voltage | 9 - 31.2 V DC |
| Power Consumption | 45 W max, 1 W off |
| Recommended Fuse Rating | 3 A |
| Protection | Reverse polarity and temporary over-voltage to 36 V |
Connectivity
| Ethernet | 3 ports (2 with PoE), RJ45 |
| NMEA 2000 | 1 x Micro-C port, 1 LEN |
| NMEA 0183 | 2 ports (4800 / 9600 / 19200 / 38400 baud) |
| RS422 | 2 serial ports (1200 - 115200 baud) |
| HDMI Output | 2 ports (type A) |
| Video Input | 2 ports (BNC, NTSC or PAL) |
| USB | 2 x USB-A |
| Card Reader | 1 SD card slot (max 32 GB) |
| Wi-Fi | Not built in (requires external Wi-Fi module on the Ethernet network) |
Environment
| Operating Temperature | -15 C to +55 C |
| Storage Temperature | -20 C to +60 C |
| Waterproof Rating | IPX2 |
Physical
| Dimensions (W x H x D) | 281 x 265 x 69 mm |
| Weight | 1.0 kg |
| Material | ABS plastic |
| Compass Safe Distance | 50 cm |
Approvals
| Compliance | CE (RED 2014/53/EU), FCC, ISED Canada, RCM (Australia/New Zealand) |
