Simrad NSO EVO3S MPU 19 Inch MFD Dual System
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

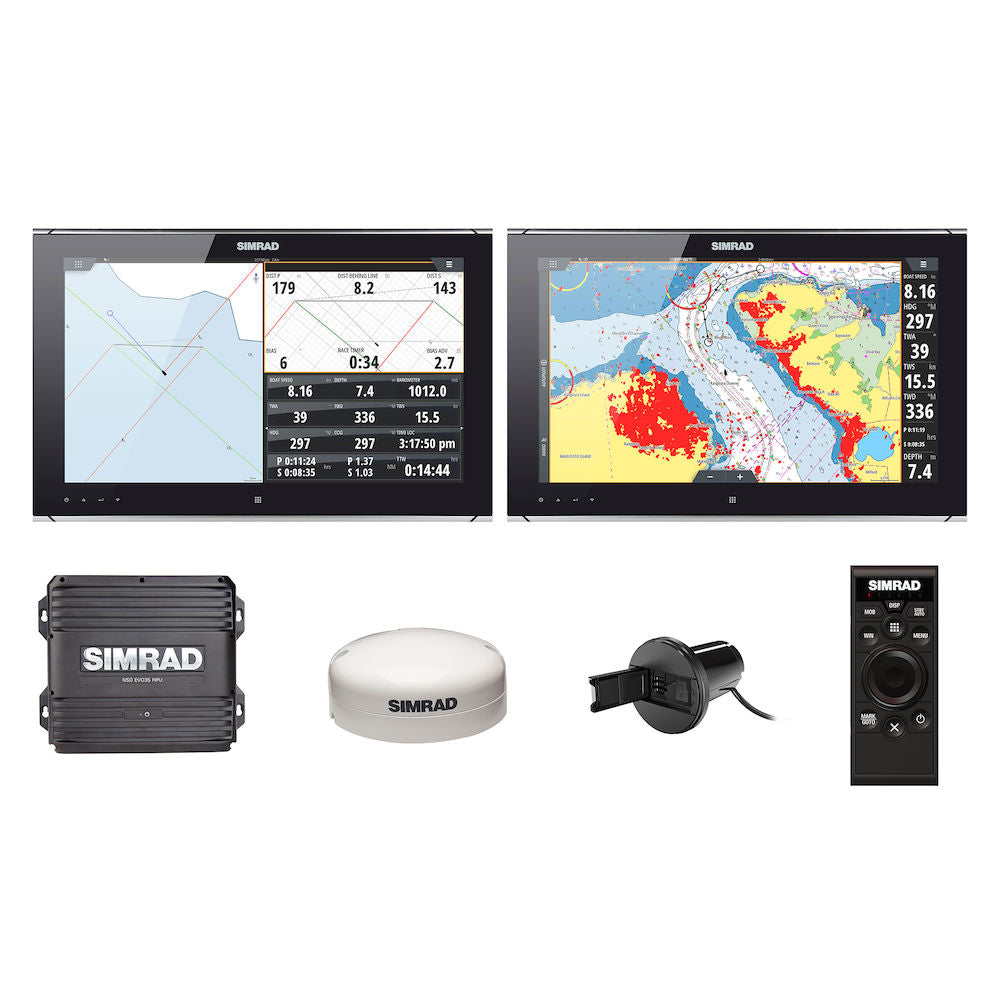

This Simrad NSO evo3S system builds a twin-display glass-bridge helm around the NSO evo3S marine processor unit and two Simrad MO19-T 19-inch Full HD touch monitors. The MPU runs dual iMX8 Quad Max processors for fast, fluid operation and drives each monitor as an independent multifunction display for charting, radar, sonar, autopilot and engine data under fingertip touch control.
\nAs a modular black-box system the MPU outputs to two independent monitors via HDMI and integrates across the vessel via three Ethernet ports and NMEA 2000. The pack adds a GS25 GPS antenna for accurate position and speed and an OP50 keypad controller for tactile operation, ideal for fine adjustments or use in rough conditions. An external sonar module is required for echosounder, and charts are added on a microSD card.
PRODUCT DETAILS
- NSO evo3S black-box marine processor with two MO19-T 19-inch touch monitors
- Dual iMX8 Quad Max processors drive both displays independently
- Two Full HD MO19-T touchscreens with wide viewing angles
- Includes GPS antenna and OP50 keypad controller
- Three Ethernet ports (two with PoE), NMEA 2000, NMEA 0183 and RS422
- Single or dual touchscreen operation from one processor
- Integrates with radar, CHIRP sonar, autopilot and third-party systems
- NSO evo3S Marine Processor Unit (MPU)
- 2 x Simrad MO19-T 19" touch monitors
- GPS antenna
- OP50 keypad controller
- MPU power, Micro-C, NMEA 0183 and Ethernet cables
- Monitor mounting and connection hardware
- Documentation pack
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
General
| Pack Includes | NSO evo3S MPU processor, 2 x Simrad MO19-T 19" touch monitors, GPS antenna, OP50 keypad controller |
| Processors | Dual iMX8 Quad Max |
| GPS | GS25 / Point-1 GPS antenna included |
Display
| Monitor | 2 x Simrad MO19-T 19" touch monitor (Full HD) |
| Monitor Support | Up to 2 independent monitors via 2 HDMI outputs |
Electrical
| MPU Supply Voltage | 9 - 31.2 V DC |
| MPU Power Consumption | 45 W max |
Connectivity
| Ethernet | 3 ports (2 with PoE), RJ45 |
| NMEA 2000 | 1 x Micro-C port, 1 LEN |
| NMEA 0183 / RS422 | 2 NMEA 0183 ports and 2 RS422 ports |
| HDMI Output | 2 ports (type A), max 1920 x 1200 |
Physical
| MPU Dimensions (W x H x D) | 281 x 265 x 69 mm |
Approvals
| Compliance | CE (RED 2014/53/EU), FCC, ISED Canada, RCM |
