Simrad

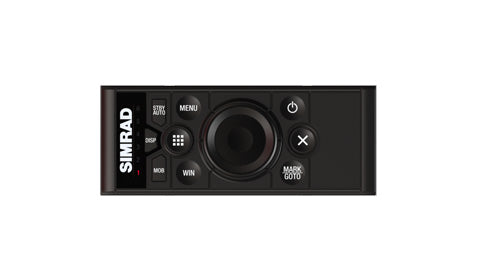

Simrad OP50 Wired Remote Controller, Landscape Mount
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Simrad OP50 is a wired remote controller that delivers precise, confident control of a Simrad multifunction display even in the roughest sea conditions. With a full set of dedicated keys and a rotary control it lets the helmsman drive the MFD without reaching the screen, which is ideal for flybridge, cockpit and dual-station installations.
The OP50 connects directly to the NMEA 2000 backbone using its integrated 1.8 m (6 ft) male Micro-C cable and the supplied Micro-C T-connector, drawing power and data from the network. Where more than one OP50 is fitted, command can be handed between units, so multiple helm positions can share control of the same display. This is the landscape-mount version of the controller.
PRODUCT DETAILS
- Rugged wired remote control for Simrad multifunction displays
- Full set of dedicated keys for precise control in rough conditions
- Connects to NMEA 2000 via integrated 1.8 m Micro-C cable and T-connector
- Landscape mounting orientation for the helm
- IPX6 rated when dash mounted
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Physical
| Dimensions (H x W) | 150 mm x 60 mm (5.9 in x 2.3 in) |
| Weight | 0.36 kg (0.8 lbs) with cable |
Electrical
| Power supply | 12 V DC (Micro-C) |
| Current consumption | Less than 90 mA, 2 LEN |
Connectivity
| Network | NMEA 2000 |
| Data cable | Integrated 1.8 m (6 ft) male Micro-C |
Environment
| Waterproof rating | IPX6 (dash mounted only) |
No videos available for this product.
