Simrad
Simrad S35
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

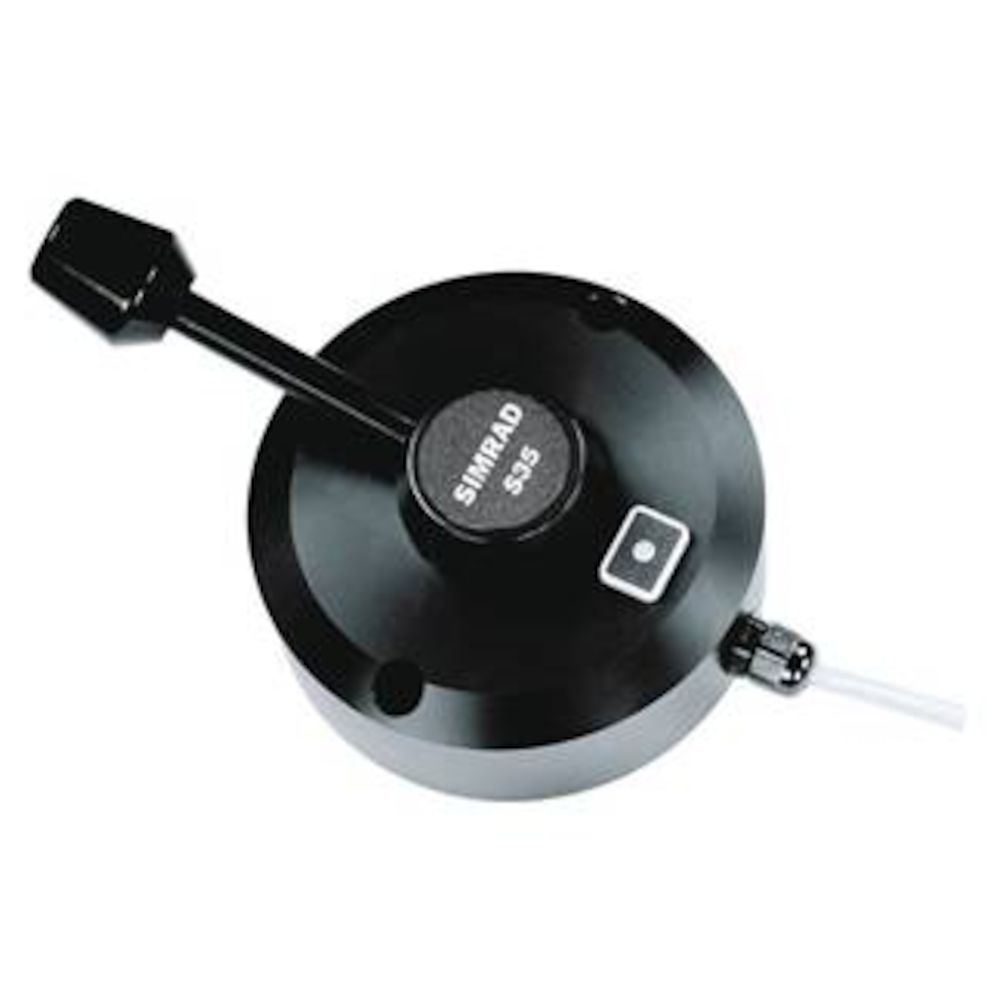

The Simrad S35 is a non-follow-up (NFU) steering lever, designed for bulkhead mounting both indoors and outdoors and built from shock-resistant polyoxymethylene. In non-follow-up operation the rudder moves while the lever is held at its maximum port or starboard position and stops when the lever is released; the lever is spring-loaded to return to its mid position.
An integral push button with a light indicator is used for autopilot mode selection when the S35 is connected to a Simrad J3XX junction unit, giving the operator a simple, robust steering and control point away from the main helm. Splashproof to IP56, the S35 is Wheelmark (MED) approved for use with AP50 and AP50 Plus autopilot systems.
PRODUCT DETAILS
- Non-follow-up (NFU) steering lever for bulkhead mounting
- Rudder moves while held to port or starboard, spring-return to centre
- Push button with light indicator for autopilot mode selection
- Connects to a Simrad J3XX junction unit
- Shock-resistant polyoxymethylene housing, IP56 splashproof
- Wheelmark approved for AP50 and AP50 Plus autopilot systems
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Type
| Control type | Non-follow-up (NFU) steering lever |
| Operation | Rudder moves while lever held to port or starboard |
| Lever return | Spring-loaded return to mid position |
Controls
| Mode button | Push button with light indicator |
Connectivity
| Connection | Simrad J3XX junction unit |
Mounting
| Mounting | Bulkhead, indoor and outdoor |
Physical
| Housing material | Shock-resistant polyoxymethylene |
Environment
| Waterproof rating | IP56 (splashproof) |
Approvals
| Type approval | Wheelmark (MED) approved for AP50 and AP50 Plus |
