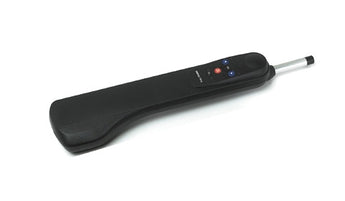

Simrad Tillerpilot TP22 - SimNet/NMEA
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Simrad TP22 is a capable tillerpilot for tiller-steered sailing yachts up to 12 m (39 ft) overall, combining sophisticated steering software and a built-in fluxgate compass with a powerful screw-thread drive. It delivers accurate course holding with minimal current consumption and notably quiet operation.
Built-in SimNet and NMEA 0183 interfaces let the TP22 share heading, wind and navigation data with compatible Simrad instruments and chartplotters, enabling Steer To Wind and Nav (Steer To GPS) modes alongside standard auto-tack and compass steering. Adjustable Response Control and a Seastate filter tune performance to the conditions.
PRODUCT DETAILS
- For tiller-steered sailing yachts up to 12 m (39 ft)
- Powerful screw-thread drive, quiet and low-power
- Built-in fluxgate compass and steering software
- Built-in SimNet and NMEA 0183 interfaces
- Steer To Wind and Nav (Steer To GPS) modes
- Adjustable Response Control and Seastate filter
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
General
| Boat length (max) | 12 m (39 ft) |
Electrical
| Supply voltage | 12 V (10-16 V) DC |
| Current consumption | Standby 60 mA, Auto 500 mA (typical) |
Data
| NMEA 0183 | Compliant with versions 2.0, 2.3 and 3.0 (4800 baud) |
Drive
| Drive system | Screw thread |
| Peak thrust | 70 kg (154 lbs) |
| Operating stroke | 250 mm (10 in) |
| Hardover time | 6.9 s at 0 kg, 8.0 s at 20 kg, 12.0 s at 40 kg |
Environmental
| Operating temperature | -10 C to +55 C (14 F to 131 F) |
Physical
| Length at mid-stroke | 610 mm (24 in) |
| Mounting | Starboard as default (reversible) |
