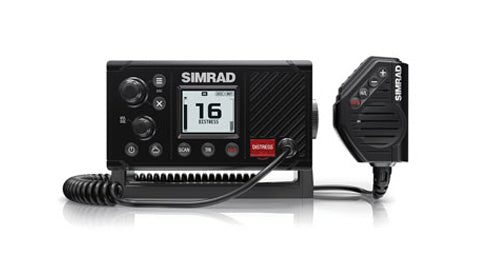

Simrad RS20 VHF Fixed Mount DSC VHF Radio
Description
The Simrad RS20 is a straightforward, compact fixed-mount VHF radio that delivers full Class D Digital Selective Calling at an accessible price. A separate built-in CH70 receiver keeps watch on the digital distress channel, and a one-touch distress button transmits your MMSI and position until acknowledged. When connected to a GPS source, your latitude, longitude and time are shown on the display and sent with DSC calls.
Everyday operation is simple, with a four-key hand mic and built-in speaker, switchable 25 W or 1 W transmit power, dual and tri-watch scanning, a dedicated weather key and a powerful 4 W external audio output. NMEA 2000 and NMEA 0183 connectivity let the RS20 share data with the rest of your electronics, and the radio is waterproof and submersible to IPx7.
PRODUCT DETAILS
- Class D DSC with a separate built-in CH70 receiver and one-touch DISTRESS calling
- Four-key hand mic with built-in speaker
- Dual and tri-watch scanning plus dedicated weather key
- On-screen position and time from a connected GPS source
- 25 W / 1 W switchable transmit power and 4 W external audio output
- NMEA 2000 and NMEA 0183 connectivity
- Waterproof and submersible to IPx7
No exploded diagram available for this product.
No compatible transducers listed for this product.
Lowrance, Simrad, B&G 1710 VHF antenna, 2.5 m (8 ft) ultraglass, quickfit 6dB
Lowrance, Simrad, B&G 1770 VHF antenna, 1 m (3 ft) Ultraglass, quickfit 3dB
Lowrance, Simrad, B&G 1810 VHF antenna mount, nylon heavy duty, quickfit 5m Cable
Lowrance, Simrad, B&G 1815 VHF antenna mount, stainless steel, quickfit with 5m Cable
No compatible products found.
General
| Usable channels | International, USA, Canada, Weather (country specific) |
| Mode | 16K0G3E (FM) / 16K0G2B (DSC) |
| DSC class | Class D (Global) with dual receiver (individual CH70) |
| Frequency range (transmitter) | 156.025 - 157.425 MHz |
| Frequency range (receiver) | 156.050 - 163.275 MHz |
| Channel spacing | 25 kHz |
| Frequency stability | +/- 5 ppm |
Display
| LCD display | FSTN |
Transmitter
| Output power | 25 W (23 +/- 2) / 1 W (0.8 +/- 0.2) |
| Spurious and harmonics | <= 0.25 microW |
Receiver
| 12 dB SINAD sensitivity | 0.25 microV (distant) / 0.8 microV (local) |
| Adjacent channel selectivity | More than 70 dB |
| Audio output power | 2 W (8 ohm, 10% distortion) / 4 W (4 ohm external speaker) |
Connectivity
| NMEA 2000 | Yes |
| NMEA 0183 | Yes (input RMC, GGA, GLL, GNS; output DSC, DSE) |
| Antenna connector | SO-239 (50 ohm) |
| External speaker | Yes |
Electrical
| Power supply | 12 V DC, nominal +13.6 V DC |
| Current drain (transmit) | <= 6 A @ 25 W / 1.5 A @ 1 W |
| Current drain (receive/standby) | Less than 450 mA in standby |
Environment
| Waterproof rating | IPx7 |
| Operating temperature | -20 C to +55 C |
Physical
| Dimensions (W x H x D) | 166.7 x 89.2 x 161.4 mm (without bracket) |
| Weight | 1.18 kg |
| Compass safe distance | 0.5 m |
