Garmin

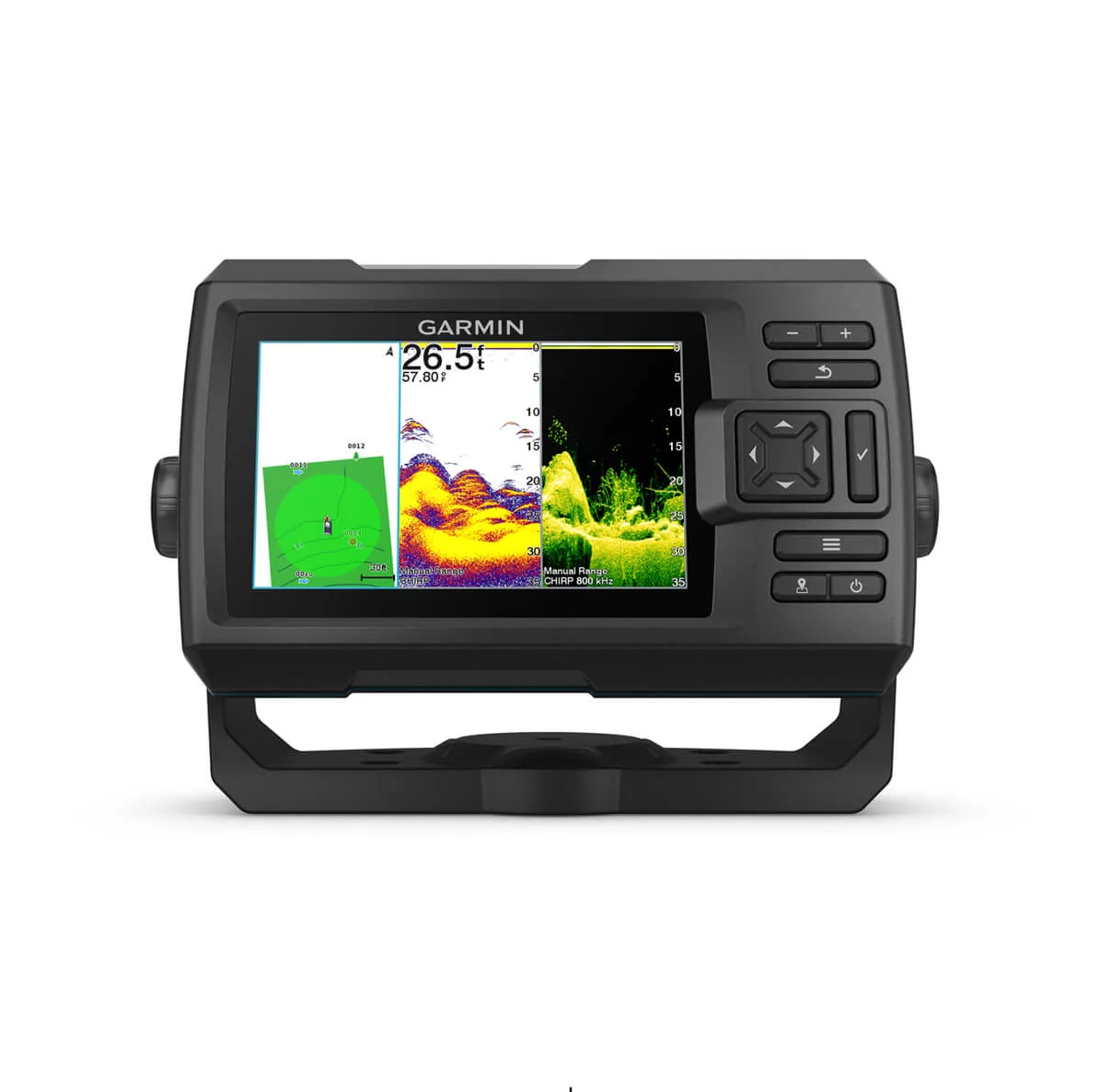

STRIKER™ Vivid 5cv without Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The STRIKER Vivid 5cv brings clear, high-contrast sonar to a compact 5 in. colour display. Supplied here as the head unit only, it lets you pair the unit with the Garmin transom-mount transducer that best suits your boat. Garmin CHIRP traditional sonar shows fish arches and bait, while high-frequency CHIRP ClearVu scanning sonar reveals near-photographic detail of structure and the bottom, and Vivid colour palettes add contrast so targets stand out.
Built-in high-sensitivity GPS lets you mark and navigate back to docks, ramps and proven hotspots, view your speed over ground, and build your own fishing maps with Garmin Quickdraw Contours. Rated IPX7, the Vivid 5cv is a straightforward, dependable fishfinder for anglers who already own a compatible transducer or want to choose their own.
PRODUCT DETAILS
- Easy-to-use 5 in. WVGA colour GPS fishfinder (head unit only, transducer sold separately)
- Vivid scanning sonar colour palettes give high contrast to separate fish and structure
- Supports Garmin CHIRP traditional sonar plus CHIRP ClearVu scanning sonar at up to 500 W RMS
- Compatible with Garmin GT-series transom-mount transducers (4-pin)
- Built-in high-sensitivity GPS to mark waypoints and track speed over ground
- Garmin Quickdraw Contours software creates custom 1 ft contour maps as you fish
- IPX7 waterproof rating for confident use in the marine environment
- STRIKER Vivid 5cv device
- Tilt/swivel mount with quick-release cradle
- Power cable
- Mounting hardware
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Display size | 5 in. (12.7 cm) diagonal |
| Display resolution | 800 x 480 pixels |
| Display type | WVGA colour |
Sonar
| Sonar technology | Garmin CHIRP traditional sonar and Garmin CHIRP ClearVu scanning sonar (transducer required, sold separately) |
| Traditional sonar frequencies | 50/77/200 kHz CHIRP (mid and high) |
| ClearVu frequencies | 260/455/800 kHz |
| Transmit power | 500 W (RMS) |
| Transducer port | One 4-pin transducer port (transducer not included with this version) |
GPS
| GPS | Integrated high-sensitivity GPS; mark waypoints, Course Over Ground (COG) |
| Mapping | Garmin Quickdraw Contours mapping software (create custom contour maps) |
Physical
| Dimensions (W x H x D) | 18.8 x 11.6 x 5.4 cm (7.4 x 4.5 x 2.1 in.) |
| Weight | 0.5 kg (1.0 lb), device only |
Electrical
| Input voltage | 12 to 20 Vdc |
| Rated current | 1.5 A |
| Current draw at 12 V | 0.40 A |
| Fuse | 3 A, 250 V fast-acting |
Environmental
| Water rating | IEC 60529 IPX7 (withstands incidental exposure to water of up to 1 m for up to 30 min) |
| Operating temperature range | -15 to 55 C (5 to 131 F) |
