Garmin
STRIKER™ Vivid 9sv with GT52HW-TM Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

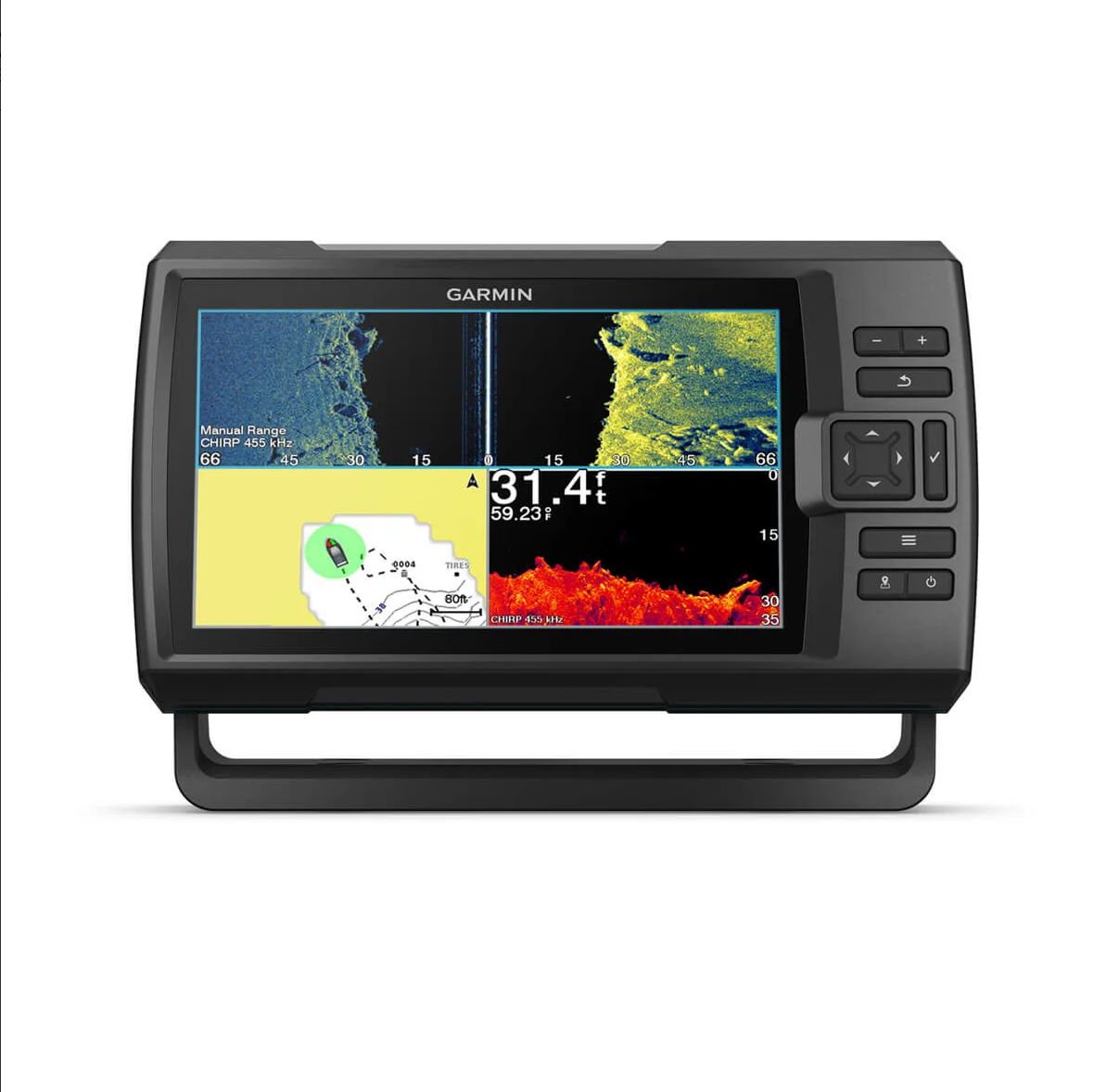

The STRIKER Vivid 9sv is the flagship of the range, pairing a large 9 in. colour display with Garmin CHIRP traditional sonar, high-frequency CHIRP ClearVu, and CHIRP SideVu scanning sonar. SideVu sweeps a wide swath either side of the boat so you can quickly find fish-holding structure and cover, while the big screen makes split-screen sonar views easy to read. Vivid scanning sonar colour palettes add contrast that makes targets and bottom detail stand out.
Built-in high-sensitivity GPS lets you mark and return to docks, ramps and proven spots, view your speed over ground, and build custom fishing maps with Garmin Quickdraw Contours. Built-in Wi-Fi connects to the ActiveCaptain app for the Quickdraw Community and software updates. Rated IPX7 and supplied with the GT52HW-TM transom-mount transducer, the Vivid 9sv is a fully featured fishfinder for anglers who want maximum detail on a large display.
PRODUCT DETAILS
- Large, easy-to-use 9 in. WVGA colour GPS fishfinder for traditional and scanning sonar
- Garmin CHIRP traditional, ClearVu and SideVu scanning sonar at up to 500 W RMS
- SideVu adds wide side-to-side imaging to locate structure and cover fast
- Vivid scanning sonar colour palettes give high contrast to separate fish and structure
- Includes GT52HW-TM transom-mount transducer with built-in temperature sensor
- Built-in high-sensitivity GPS to mark waypoints and track speed over ground
- Built-in Wi-Fi and Garmin Quickdraw Contours custom-map software
- IPX7 waterproof rating for confident use in the marine environment
- STRIKER Vivid 9sv device
- GT52HW-TM transom-mount transducer (12-pin, with temperature sensor)
- Tilt/swivel mount with quick-release cradle
- Power cable
- Transducer and mounting hardware
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Display size | 9 in. (22.9 cm) diagonal |
| Display resolution | 800 x 480 pixels |
| Display type | WVGA colour |
Sonar
| Sonar technology | Garmin CHIRP traditional sonar, Garmin CHIRP ClearVu and Garmin CHIRP SideVu scanning sonar |
| Traditional sonar frequencies | 50/77/200 kHz CHIRP (mid and high) |
| ClearVu and SideVu frequencies | 260/455/800 kHz |
| Transmit power | 500 W (RMS) |
| Transducer included | GT52HW-TM transom-mount transducer (12-pin) with built-in temperature sensor |
GPS
| GPS | Integrated high-sensitivity GPS; mark waypoints, Course Over Ground (COG) |
| Mapping | Garmin Quickdraw Contours mapping software (create custom contour maps) |
General
| Wireless connectivity | Wi-Fi, 2.4 GHz |
Physical
| Dimensions (W x H x D) | 28.2 x 16.5 x 6.0 cm (11.1 x 6.5 x 2.4 in.) |
| Weight | 1.1 kg (2.4 lb), device only |
Electrical
| Input voltage | 12 to 20 Vdc |
| Rated current | 1.5 A |
| Current draw at 12 V | 0.67 A |
| Fuse | 3 A, 250 V fast-acting |
Environmental
| Water rating | IEC 60529 IPX7 (withstands incidental exposure to water of up to 1 m for up to 30 min) |
| Operating temperature range | -15 to 55 C (5 to 131 F) |
