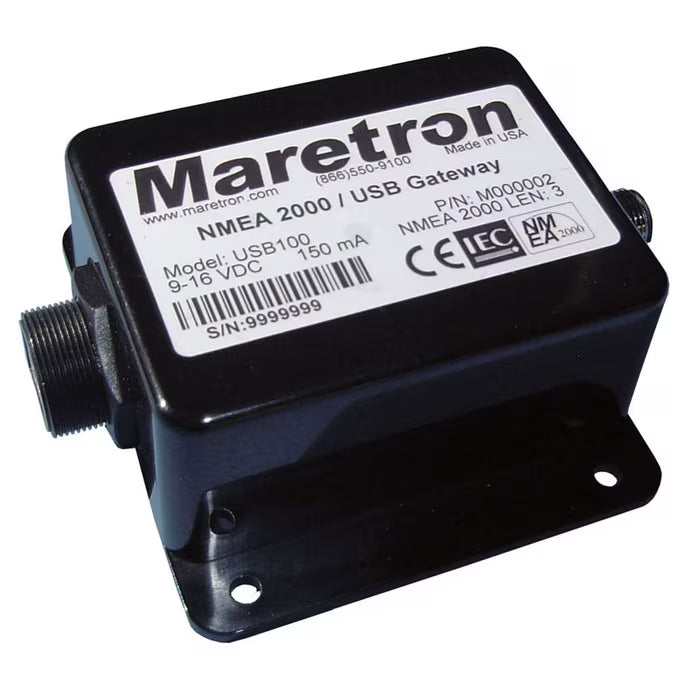

Maretron Gateway NMEA2000 USB
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Maretron USB100 provides one simple, opto-isolated connection between an NMEA 2000 network and a Windows PC, eliminating the multiplexers and tangle of wiring usually needed to interface marine instruments to a computer. It lets you take full advantage of PC-based vessel monitoring and control software such as Maretron N2KView, while continuing to use navigation and charting software you already own.
For applications that expect NMEA 0183, the gateway automatically translates a wide range of NMEA 2000 data types, including GPS, depth, speed, wind, heading, rudder and engine parameters, into NMEA 0183 sentences. Used together with Maretron N2KAnalyzer software, the USB100 also lets you configure, update and troubleshoot products connected to the network, and save and restore a vessel's full product configuration should a device need replacing.
PRODUCT DETAILS
- Bridges a PC to an NMEA 2000 network over a single USB connection
- Automatically converts NMEA 2000 data to NMEA 0183 sentences for legacy software
- Opto-isolated for no electrical connection across the bridge
- Works with N2KView monitoring and N2KAnalyzer configuration software
- Full-speed USB up to 12 Mb/s with waterproof Type B connector
- Rugged IP67 waterproof housing rated to marine standards
- USB100 NMEA 2000 to USB Gateway
- Windows drivers and software (N2KView / N2KAnalyzer supported)
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Operating Voltage | 9 to 32 Volts DC |
| Power Consumption | < 50mA |
| Load Equivalence Number (LEN) | 1 |
| Reverse Battery Protection | Yes, indefinitely |
| Load Dump Protection | Yes, energy rated per SAE J1113 |
Mechanical
| Size | 3.11" x 3.46" x 1.38" (79mm x 88mm x 35mm) including mounting flanges |
| Weight | 8 oz. (227 g) |
Interface
| NMEA 2000 Connector | DeviceNet Micro-C (industry standard waterproof) |
| NMEA 2000 / USB Isolation | Opto-isolated (no electrical connection across bridge) |
| USB Standard | USB 1.1 |
| USB Connector | USB Type B (industry standard waterproof) |
| USB Baud Rate | Up to 12 Mb/s (full-speed USB) |
| USB Interface Modes | NMEA 0183 (with Maretron Windows drivers) or native NMEA 2000 (N2KView / N2KAnalyzer) |
| Supported Operating Systems | Windows XP, Vista, 7, 8 and 10 |
Environmental
| Degree of Protection | IP67 |
| Operating Temperature | -25C to 55C |
| Storage Temperature | -40C to 70C |
NMEA 2000
| NMEA 2000 Standard | Level A |
Certifications
| Compliance | IEC 61162-3, IEC 60945, FCC and CE Mark |
