Actisense Isolated USB To Serial Gateway for use with NMEA 0183, RS422 and RS232
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Actisense USG-2 turns a PC USB port into a bi-directional serial port suitable for connecting to a marine standard NMEA 0183 data bus. It provides a far safer connection than an ordinary USB-to-serial converter, using an OPTO-isolated input and an ISO-Drive isolated output to keep the PC and the boat's electronics electrically separate and free from the ground loops that damage connected equipment.
The isolated input uses Actisense OPTO-isolation circuitry to protect connected devices and can receive the very low level signals that a standard PC serial port often cannot. Fully NMEA 0183, RS422 and RS232 compatible, the USG-2 supports baud rates from 300 to 230400 bps, and its encapsulated, potted electronics give a high level of water and ingress protection.
A high quality shielded USB lead is included, mating with a high-retention USB socket for a secure, water-resistant connection, and a pluggable screwless connector with locking latch makes the NMEA side quick to wire. Three LEDs confirm power and data activity, and the unit mounts to a bulkhead with an optional DIN rail kit available.
PRODUCT DETAILS
- Converts a PC USB port into a safe, isolated NMEA 0183 serial connection
- Fully NMEA 0183, RS422 and RS232 compatible
- OPTO-isolated input (2500V) and ISO-Drive isolated output (1500V)
- Encapsulated, potted electronics rated to IP67
- Baud rates from 300 to 230400 bps
- High quality shielded USB lead with high-retention USB socket included
- Pluggable screwless connector with locking latch and diagnostic LEDs

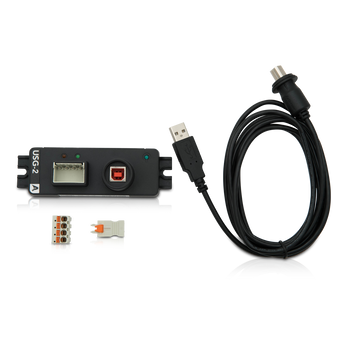

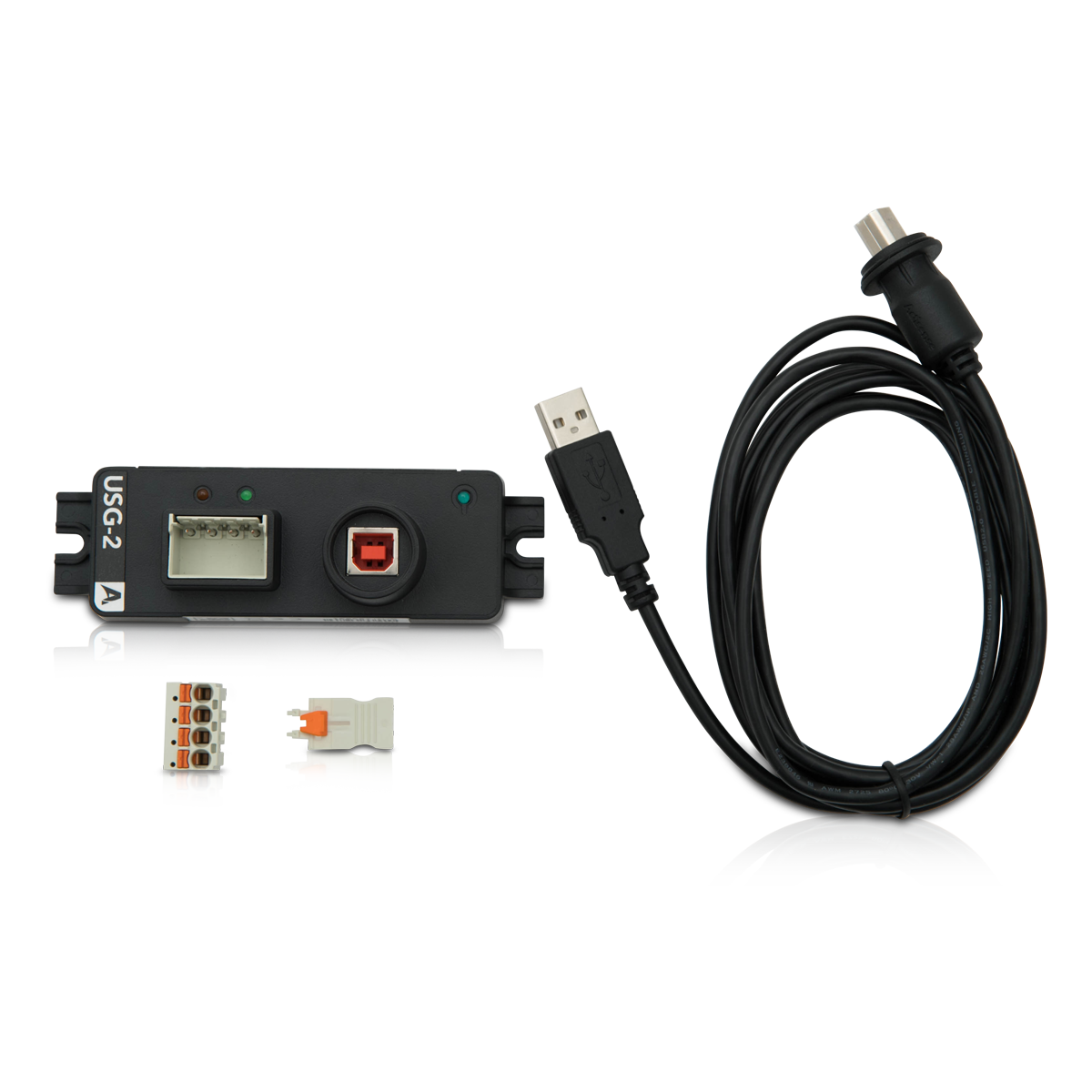

- USG-2 isolated USB to serial gateway
- 2.0m shielded USB Type-A to Type-B cable with sealing plug
- Pluggable screwless connector
- Mounting screws
- Quick start guide
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Power (USB)
| Supply Voltage | 5V DC (from USB host) |
| Supply Current | 50mA @ 5V DC |
NMEA 0183 Port
| Listener / Input Ports | One isolated NMEA 0183 Listener |
| Talker / Output Ports | One isolated NMEA 0183 Talker |
| Compatibility | Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible |
| Electrical Isolation | 2500V input to ground, 1500V output to ground using ISO-Drive |
| Speed / Baud Rate | 300 to 230400 bps |
| Connectivity | Pluggable screwless connector with locking latch (12 to 24 AWG) |
USB Port
| Compatibility | USB 1.1, 2.0 and 3.0 |
| Electrical Isolation | 2500V input to ground |
| Connectivity | High retention Type-B receptacle with custom USB Type-B sealing plug |
| Cable | 2.0m shielded USB Type-A to Type-B cable |
Mechanical
| Housing Material | ABS (PA-765), flame retardant to UL94 V-0 |
| Weight | Main body 65g, USB cable 70g |
| Mounting | Bulkhead mount (stainless screws included) or optional DIN rail mount kit |
Environmental & Approvals
| EMC | EN 60945 (sections 9 & 10) |
| Environmental Protection | IP67 (encapsulated electronics) |
| Operating Temperature | -20 C to +70 C |
| Storage Temperature | -40 C to +85 C |
| Guarantee | 3 years |
