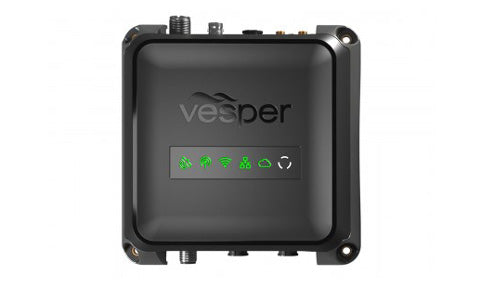

Vesper Cortex M1 SOTDMA smart AIS transponder with remote vessel monitoring
£1,499.99
/
Tax included.
Shipping calculated at checkout.
010-02815-20
The Vesper Cortex M1 is a full Class B SOTDMA smartAIS transponder and remote vessel-monitoring hub in one compact unit. It transmits at 5 W, adds smartAIS collision avoidance and anchor watch, and includes an integrated no-loss antenna splitter, built-in Wi-Fi and cellular. Add a Cortex handset later for full VHF radio capability.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Cortex M1 is the hub at the heart of the Cortex system: a full Class B SOTDMA smartAIS transponder with built-in vessel monitoring. SOTDMA transmits at 5 W, helping your boat stand out in dense traffic, while smartAIS continuously calculates collision risk and warns you with voiced alerts. A built-in heading sensor broadcasts your direction so other vessels can predict your movements more accurately.
Built-in Wi-Fi and cellular connect the Cortex apps, letting you monitor battery voltage, bilge, position, depth and more, on board or from ashore, and receive anchor-drag and man overboard alerts. An integrated no-loss splitter shares one antenna between AIS and VHF, and isolated NMEA 2000 and NMEA 0183 ports share data with compatible chartplotters and instruments. Add a Cortex H1 or H1P touchscreen handset whenever you want full 25 W VHF voice and Class D DSC.
PRODUCT DETAILS
- Full Class B SOTDMA smartAIS transponder transmitting at 5 W so your vessel is seen clearly in busy waters
- smartAIS collision avoidance with voiced alerts, anchor watch and man overboard alerts
- Built-in Wi-Fi and cellular for remote vessel monitoring on board and ashore via the Cortex apps
- Integrated no-loss AIS/VHF antenna splitter lets AIS and VHF share a single antenna
- Built-in 10 Hz multi-constellation GNSS (GPS, GLONASS, BeiDou, Galileo) with anti-jamming and anti-spoofing
- Monitor up to 5 directly connected sensors plus the NMEA 2000 network for battery, bilge, depth and more
- NMEA 2000 and NMEA 0183 connectivity with gateway translation between the two
- Add a Cortex H1 or H1P handset at any time to gain full 25 W VHF voice and Class D DSC
- Cortex M1 hub
- GPS antenna (with 10 m cable)
- Power cable
- Audio cable
- External sensors cable
- External Wi-Fi antenna
- VHF patch cable
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
General
| Product type | Class B SOTDMA smartAIS transponder and remote vessel-monitoring hub (Cortex M1 hub) |
| VHF capability | Add a Cortex H1 tethered or H1P portable handset for full 25 W VHF voice and Class D DSC functionality |
| Supported protocols | AIS Class B SOTDMA, VHF Voice (with handset), Class D DSC (with handset), ATIS (user configurable, EU region), NOAA Weather (US region) |
AIS
| AIS class | Class B SOTDMA (smartAIS), transmit and receive |
| AIS transmit power | 5 W / 1 W (high / low) |
| AIS dedicated RX channels | 2 |
| AIS frequency range | 156.025-162.025 MHz |
| smartAIS features | Collision avoidance with voiced alerts, anchor watch, man overboard (MOB) alerts, AIS Aids to Navigation; built-in heading sensor broadcast |
| Built-in antenna splitter | Integrated no-loss AIS/VHF splitter; max input power 25 W; insertion loss RX 0 dB, TX less than 1 dB; BNC splitter connector |
GPS
| GNSS constellations | GPS, GLONASS, BeiDou, Galileo; 72 channels |
| GPS update rate | 10 Hz |
| Differential support | SBAS, WAAS, EGNOS |
| GNSS features | Anti-jamming, anti-spoofing; IEC 61108 certified; external GPS antenna (10 m cable, SMA) |
Monitoring
| Onboard and remote monitoring | Cortex Onboard App (Wi-Fi, on board) and Cortex Monitor App (cellular, ashore); free basic monitoring with twice-daily updates, real-time updates and device control with Premium subscription |
| Monitored data | Battery voltage, barometric pressure, boat position; external sensors for bilge level/pump, temperature, security, wind, water depth, NMEA 2000 network |
| smartAIS anchor watch | Combines position and heading to detect anchor drag; alarm sounds on handsets, connected speaker and smartphone; geofence location alarms |
| External sensor inputs | Monitor up to 5 external sensors connected directly: digital (0-24 V) and analog (0-10 V); 2 control outputs (low-side driven, max 200 mA) |
Connectivity
| NMEA 2000 | 1 x isolated Micro-C male port; AIS, GPS and MOB PGN output; gateway translations to/from NMEA 0183 |
| NMEA 0183 | 1 x isolated port; AIS and GPS sentences; 4800 / 38400 baud |
| Wi-Fi | 2.4 GHz 802.11b/g/n access point for up to 10 devices; integrated antenna with optional SMA-RP external port; WPA2 Personal |
| Cellular | LTE-Cat1 with 3G fallback (USA), 3G (Canada, EU, Asia); integrated SIM and antenna; optional SMA-RP external port |
Display
| Status indicators | Coloured backlit status indicators for GPS/GNSS, VHF/AIS, Wi-Fi, cloud and power (hub has no display; configured via app or Cortex handset) |
Electrical
| Power supply | 9-33 V DC; at 12 V: 6 A max, 500 mA nominal |
| Antenna connector | SO239 (VHF antenna in); BNC (no-loss splitter) |
| Audio output | 10 W Class D amplifier (THD less than 1%), 4 ohm external speaker driver |
Physical
| Hub dimensions | 168 x 168 x 58.7 mm |
| Hub weight | 770 g |
| Housing | Full plastic IPx7 housing; galvanically isolated ports |
| Warranty | 2 years |
Environmental
| Waterproof rating | IPx7 |
| Operating temperature | -25 C to +55 C |
No videos available for this product.
What is the difference between the Cortex M1 and Cortex V1?
The M1 is the Cortex hub on its own: a full Class B SOTDMA smartAIS transponder with vessel monitoring, but no VHF voice radio. The V1 is the same hub supplied with a Cortex H1 tethered touchscreen handset, which adds full 25 W VHF voice and Class D DSC. You can upgrade an M1 to full VHF at any time by adding a Cortex handset.
Does the Cortex M1 transmit AIS?
Yes. The M1 is a full Class B SOTDMA smartAIS transponder that both transmits and receives. SOTDMA transmits at 5 W to help your vessel be seen over a greater distance, and adds smartAIS collision avoidance, anchor watch and man overboard alerts.
What is included with the Cortex M1?
The M1 comes with the Cortex M1 hub, a GPS antenna with a 10 m cable, a power cable, an audio cable, an external sensors cable, an external Wi-Fi antenna and a VHF patch cable. A VHF/AIS antenna, a fuse or circuit breaker and fixings are required but not supplied.
How does remote vessel monitoring work?
The hub has built-in Wi-Fi and cellular. The Cortex Onboard App monitors and configures the system over Wi-Fi on board, while the Cortex Monitor App sends status and alerts to your smartphone over the cellular network from ashore. Free monitoring gives twice-daily updates; a Premium subscription adds real-time updates and remote device control.
How many sensors can the Cortex M1 monitor?
The hub has five external sensor inputs for directly connected sensors such as bilge level and pump, temperature, security and wind, plus battery voltage and barometric pressure built in. It can also monitor sensors across the NMEA 2000 network.
Does the Cortex M1 work with NMEA 2000?
Yes. The hub has an isolated NMEA 2000 Micro-C port and a NMEA 0183 port with gateway translation between them, outputting AIS, GPS and MOB data to compatible chartplotters, MFDs and instruments.
