Garmin
VHF 115 Marine Radio
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin VHF 115 is a space-saving fixed-mount marine VHF radio that keeps you in contact with shore, other vessels and emergency services. Selectable 1 W and 25 W transmit power and standard Class D digital selective calling provide dependable communication and one-touch distress alerts once your MMSI is programmed, and the radio is preprogrammed with International, USA and Canada marine channels.

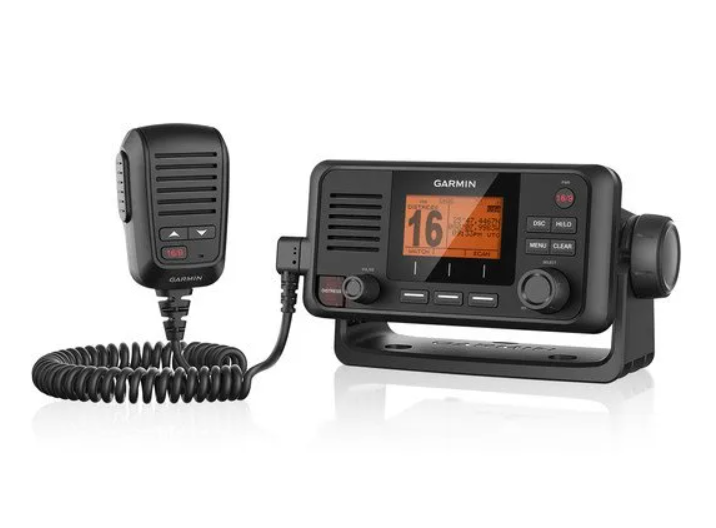

The compact black-box design with a removable front-mounted fist microphone suits helms where panel space is limited. NMEA 2000 and NMEA 0183 connectivity allows DSC and position information to be shared with compatible Garmin chartplotters and multifunction displays, while a built-in two-way hailer with foghorn extends communication around the boat. The IPX7-rated housing is built for the marine environment.
PRODUCT DETAILS
- Compact fixed-mount marine VHF radio with front-mounted fist microphone
- 1 W and 25 W selectable transmit power with Class D DSC distress and direct calling
- Preprogrammed with International, USA and Canada marine channels
- Two-way hailer with foghorn for onboard announcements
- NMEA 2000 and NMEA 0183 connectivity for integration with Garmin chartplotters
- Removable microphone with support for an additional relocated microphone
- IPX7 water-rated housing
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Radio
| Transmit power | 1 W / 25 W selectable |
| Wireless frequency | 156 to 162 MHz @ 44 dBm (25 W) maximum |
| Channels | International, USA and Canada marine channels (preprogrammed) |
| Hailer output power | 20 W at 4 ohms |
| Internal speaker audio output | 1 W (4 ohms at 10% distortion) |
| External speaker audio output | 4 W (4 ohms max) |
DSC/AIS
| DSC | Class D DSC (distress and direct calling with user-programmed MMSI) |
Connectivity
| NMEA interfaces | NMEA 2000 and NMEA 0183 |
| Antenna connector | SO-239 (50 ohms) |
| Maximum antenna gain | 9 dBi |
| NMEA 2000 LEN | 1 (50 mA at 9.0 Vdc) |
Physical
| Dimensions (H x W x D) | 8.5 x 17 x 14.6 cm (3.35 x 6.7 x 5.75 in.) |
| Weight (with microphone) | 1.241 kg (43.77 oz.) |
| Compass-safe distance | 70 cm (27.6 in.) |
Electrical
| Operating voltage | 12.0 Vdc |
| Standby current draw | 350 mA |
| Receive current draw | 600 mA |
| Transmit current draw | 2.0 A to 6.0 A (1 W to 25 W) |
Environmental
| Operating temperature range | -15 to 55°C (5 to 131°F) |
| Storage temperature range | -20 to 70°C (-4 to 158°F) |
| Water rating | IEC 60529 IPX7 |
