Garmin
VHF 315 Marine Radio
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

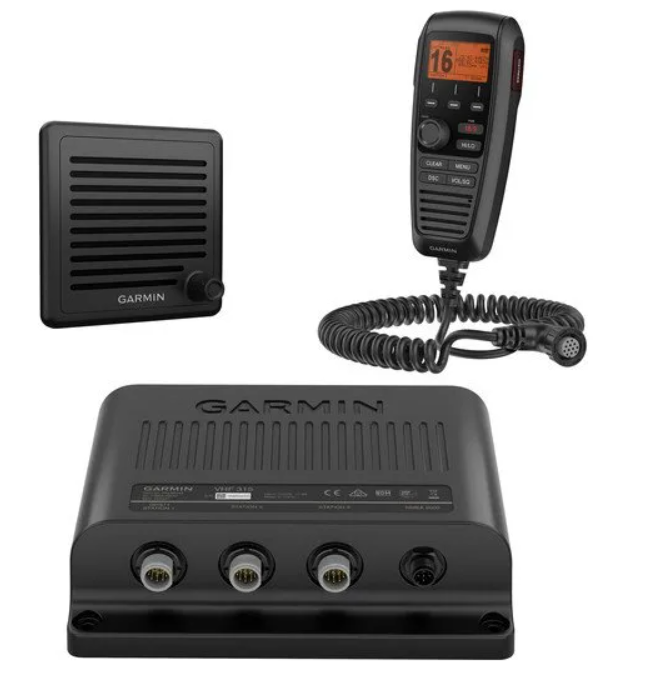

The Garmin VHF 315 is a black-box marine VHF radio that mounts out of sight while the supplied GHS 11 handset and active speaker run the helm. Selectable 1 W and 25 W transmit power and standard Class D digital selective calling provide dependable communication and one-touch distress alerts once your MMSI is programmed. The radio supports up to three handset stations, so you can talk and make announcements from the cockpit, flybridge or below deck.
NMEA 2000 and NMEA 0183 connectivity lets DSC and position data be shared with compatible Garmin chartplotters and multifunction displays, and the radio accepts GPS through the NMEA 2000 network or an external GPS antenna. A foghorn and public-address function can be sounded through a hailer horn, and the IPX7-rated black box is designed for concealed installation in the marine environment.
PRODUCT DETAILS
- Black-box marine VHF radio supplied with GHS 11 handset and active speaker
- 1 W and 25 W selectable transmit power with Class D DSC distress and direct calling
- Supports up to three handset stations for multi-location operation
- GPS-ready through NMEA 2000 or an external GPS antenna (sold separately)
- Foghorn and public-address function via an optional hailer horn
- NMEA 2000 and NMEA 0183 connectivity for integration with Garmin chartplotters
- IPX7 water-rated black box and handset
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Radio
| Transmit power | 1 W / 25 W selectable |
| Wireless frequency | 156 to 162 MHz @ 44 dBm (25 W) maximum |
| Hailer output power | 20 W at 4 ohms |
DSC/AIS
| DSC | Class D DSC (distress and direct calling with user-programmed MMSI) |
Connectivity
| NMEA interfaces | NMEA 2000 and NMEA 0183 |
| GPS source | NMEA 2000 network or external GPS antenna (sold separately) |
| Antenna connector | SO-239 (50 ohms) |
| Maximum antenna gain | 9 dBi |
| Handset stations | Supports up to three handset stations |
| NMEA 2000 LEN | 1 (50 mA at 9.0 Vdc) |
Physical
| Dimensions (H x W x D) | 6 x 20.5 x 18.1 cm (2.36 x 8.07 x 7.13 in.) |
| Weight | 1.527 kg (3.37 lb.) |
| Compass-safe distance | 50 mm (2 in.) |
Electrical
| Operating voltage | 12 Vdc |
| Standby current draw | 350 mA |
| Receive current draw | 600 mA |
| Transmit current draw | 2 A to 6 A (1 W to 25 W) |
Environmental
| Operating temperature range | -15 to 55°C (5 to 131°F) |
| Storage temperature range | -20 to 70°C (-4 to 158°F) |
| Water rating | IEC 60529 IPX7 |
GHS 11 Handset
| Dimensions (H x W x D) | 15.4 x 6.9 x 4.0 cm (6.1 x 2.7 x 1.6 in.) |
| Weight (including cable) | 0.698 kg (1.54 lb.) |
| Water rating | IEC 60529 IPX7 |
Active Speaker
| Dimensions (H x W x D) | 11.1 x 11.1 x 3.8 cm (4.37 x 4.37 x 1.5 in.) |
| Audio output power | 2.5 W nominal, 4 W max. |
| Water rating | IEC 60529 IPX7 |
