B&G
VHF RADIO,V100 SYSTEM,B&G
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

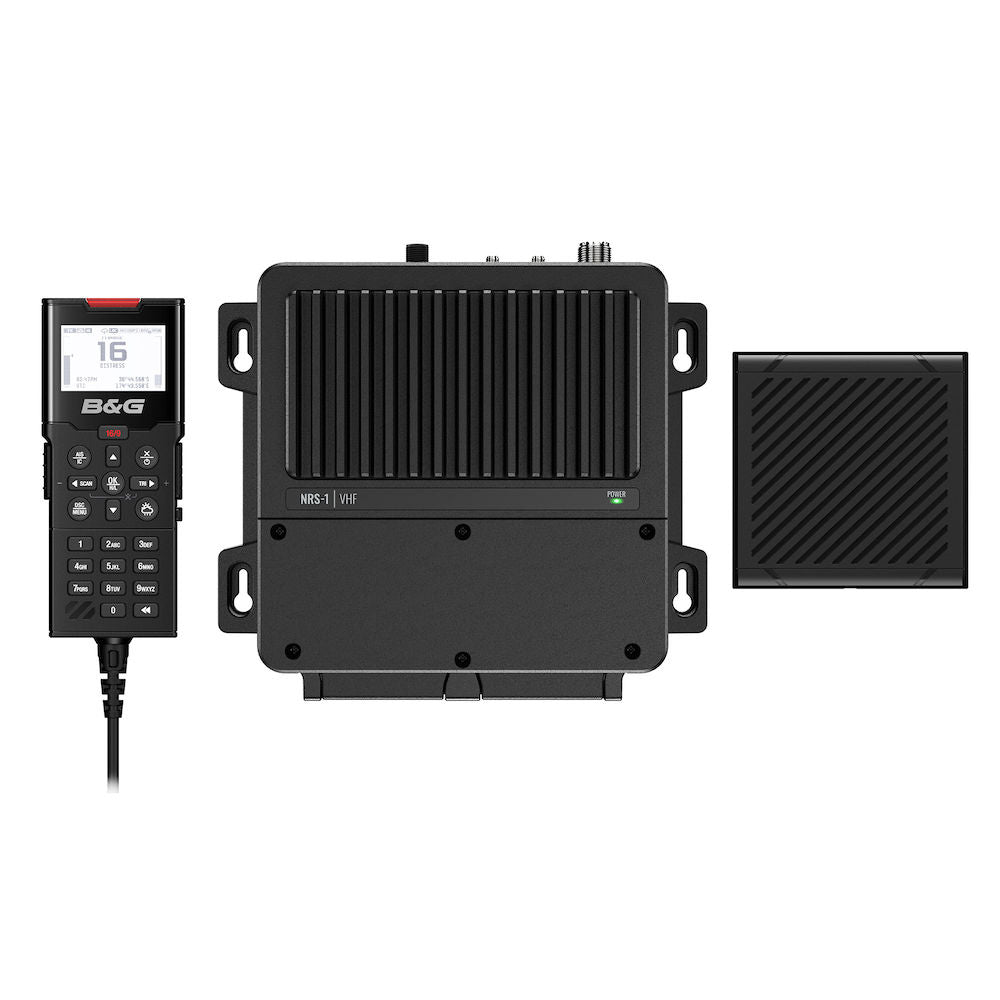

Stay safer on the water with the B&G V100 VHF marine radio. With a possible 8 connected handsets (4 wired and 4 wireless) and 4 external speakers, stay connected from anywhere on board. Add an optional GPS 500 for enhanced positioning data.
Expandable with additional handsets and speakers
The V100 comes with 1 wired handset and 1 speaker, but you can add up to 4 more B&G H60 wireless and 3 more H100 wired handsets along with up to 3 additional external speakers, doubling your radio as an on-board intercom. Each wireless handset with inductive charging, duplicates your radio's display and controls on a large, easy-to-read screen, viewable in all lights, with intuitive user interface. Access all key functions with channel scan and favourites, alphanumeric keypad, clear audio, handset station naming and 60 second audio rewind.
PRODUCT DETAILS
- Class D DSC approved VHF radio
- Integrated GPS receiver
- Connect up to 4 wireless and 4 wired handsets
- Add an optional loudhailer and up to 4 external speakers
- NMEA 0183 and NMEA 2000 connectivity
- 60 second audio rewind
- Configurable external speakers with volume offsetting
- Handset backlight settings can be grouped with NMEA2000 backlight groups
- Track Buddy - track up to 5 buddies using their VHF MMSI
- NRS-1 black box processor
- Accessory pack: black box connectors (power and hailer, wired speaker, auxiliary wiring), wireless dipole antenna (SMA), spare 10 A blade fuse
- Black box mounting kit and cable retainer
- Black box power cable (1 m)
- Fixed handset (HS100/H100) with CR100 mounting cradle and 5 m cable
- Handset cradle, cable and mounting kits
- Documents: system user manual, quick start guide, Declaration of Conformity, warranty card
No exploded diagram available for this product.
No compatible transducers listed for this product.
General
| Format | Black box system (NRS-1 processor with wired and wireless handsets) |
| GPS | Built-in GPS processor for connection with an external GPS antenna (optional GPS-500) |
| Special Functions | Man Over Board (MOB) and Navigation (NAV) functions |
| Warranty Period | 2 Years |
Performance
| DSC Class | Class D (Global DSC Class D standards) |
| Transmit Power | 25 W (High) / 1 W (Low) |
| Handset Stations | Up to 8 handsets: 4 wired (H100) and 4 wireless (HS40/H60) |
| External Speakers | Up to 4 configurable 4 W wired speaker outputs |
| Intercom, Fog Horn and Hailer | Yes (Intercom, Fog Horn, Hailer and Announce modes) |
| Audio Playback | 60 second audio rewind / record and playback |
Connectivity
| NMEA 2000 | Yes |
| NMEA 0183 | Yes |
Electrical
| Replacement Fuse | 10 A blade type |
