Victron

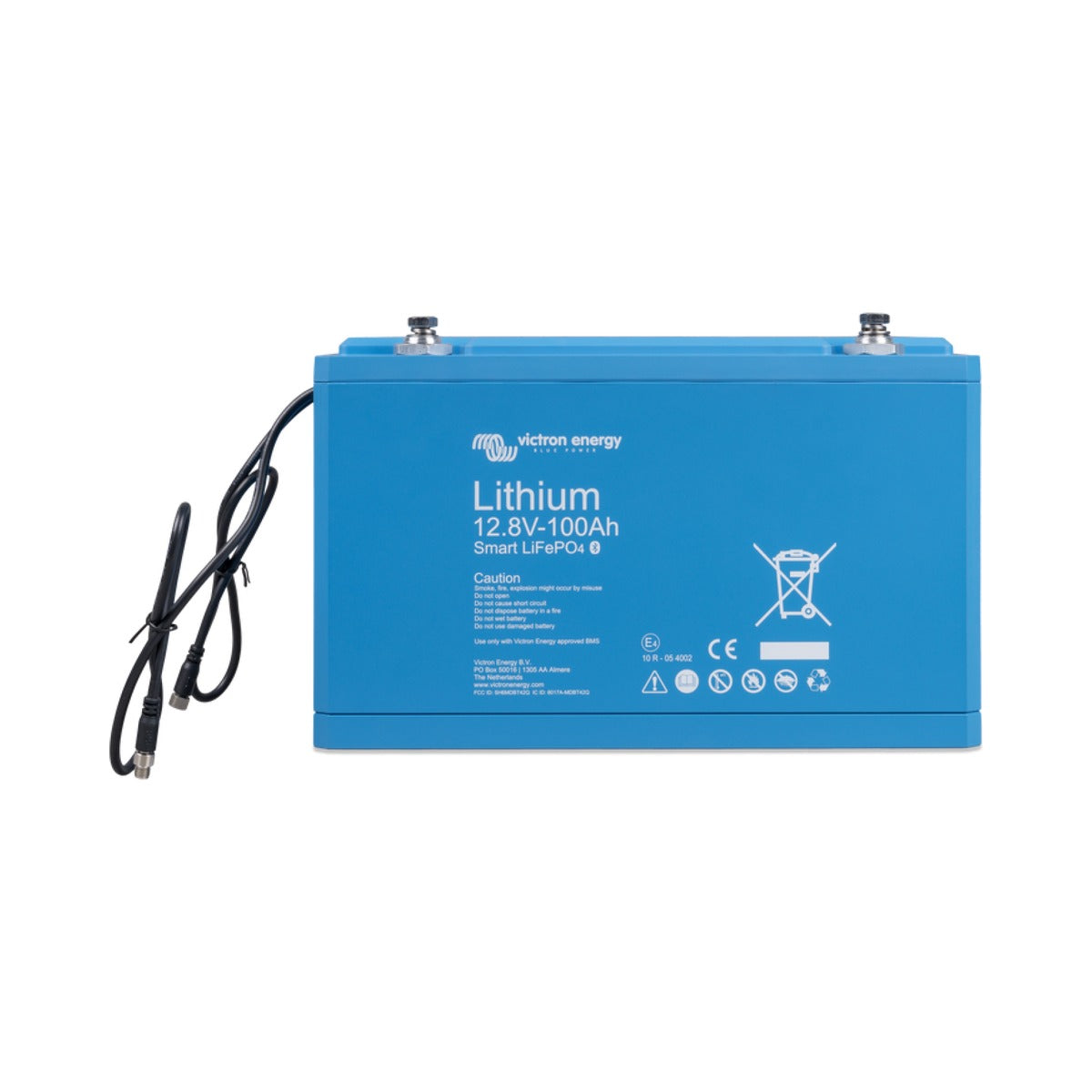

Victron Lithium Battery Smart 12.8V/100Ah
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Lithium Battery Smart 12,8V 100Ah is a Lithium Iron Phosphate (LiFePO4) cell for marine house banks where weight, usable capacity and cycle life matter. An LFP battery does not need to be fully recharged after each cycle and is happy left partially charged, which suits cruising boats, liveaboards and craft laid up over winter where a lead-acid bank would sulfate.
Integrated Bluetooth reports cell voltages, temperature and alarm status to the VictronConnect app, so cell imbalance or a developing fault can be spotted early. The battery stores 1280 Wh and delivers up to 200 A continuous, with low internal resistance and 92% round-trip efficiency that cut charging losses compared with lead-acid.
It has integrated cell balancing and monitoring but is not a drop-in battery: it requires an external Battery Management System (for example a VE.Bus BMS, smallBMS or Lynx Smart BMS) for low-voltage, high-voltage and temperature protection. Cells can be wired in series, parallel or series/parallel to build 12 V, 24 V or 48 V banks.
PRODUCT DETAILS
- Lithium Iron Phosphate (LiFePO4) chemistry; 12,8 V nominal, 100 Ah, 1280 Wh
- Built-in Bluetooth for cell voltage, temperature and alarm monitoring in VictronConnect
- Requires an external Victron BMS (VE.Bus BMS, smallBMS or Lynx Smart BMS)
- Integrated cell balancing and cell monitoring
- Up to 200 A maximum continuous discharge current
- 92% round-trip efficiency and low internal resistance
- Cycle life of 2500 cycles at 80% depth of discharge
- Connect in series, parallel or series/parallel for 12 V, 24 V or 48 V banks
- IP22 protection; M8 power terminals
No compatible transducers listed for this product.
Key specifications
| Nominal voltage | 12.8 V |
| Nominal capacity | 100 Ah |
| Nominal energy | 1280 Wh |
| Maximum continuous discharge current | 200 A |
| Bluetooth | Yes |
| Protection class (IP) | IP22 |
Electrical
| Nominal capacity at 0°C | 80 Ah |
| Nominal capacity at -20°C | 50 Ah |
| Round trip efficiency | 92 % |
| Internal resistance | 0.8 mΩ |
Discharge
| Recommended continuous discharge current | ≤100 A |
| End of discharge voltage | 11.2 V |
Charge
| Charge voltage | 14.2 V recommended (range 14 V to 14.4 V) |
| Float voltage | 13.5 V |
| Maximum charge current | 200 A |
| Recommended charge current | ≤50 A |
Cycle life
| Cycle life at 80% DoD | 2500 cycles |
| Cycle life at 70% DoD | 3000 cycles |
| Cycle life at 50% DoD | 5000 cycles |
BMS / protection
| BMS connection | Male + female cable with M8 circular connector, length 50 cm |
| Cell measurements | Bluetooth cell voltage, temperature and alarm status monitoring via VictronConnect |
Operating conditions
| Operating temperature (discharge) | -20°C to +50°C |
| Operating temperature (charge) | +5°C to +50°C |
| Storage temperature | -45°C to +70°C |
| Humidity (non-condensing) | Max. 95 % |
Physical
| Power connection / terminals | M8 threaded inserts |
| Dimensions (h×w×d) | 197 x 321 x 152 mm |
| Weight | 14 kg |
