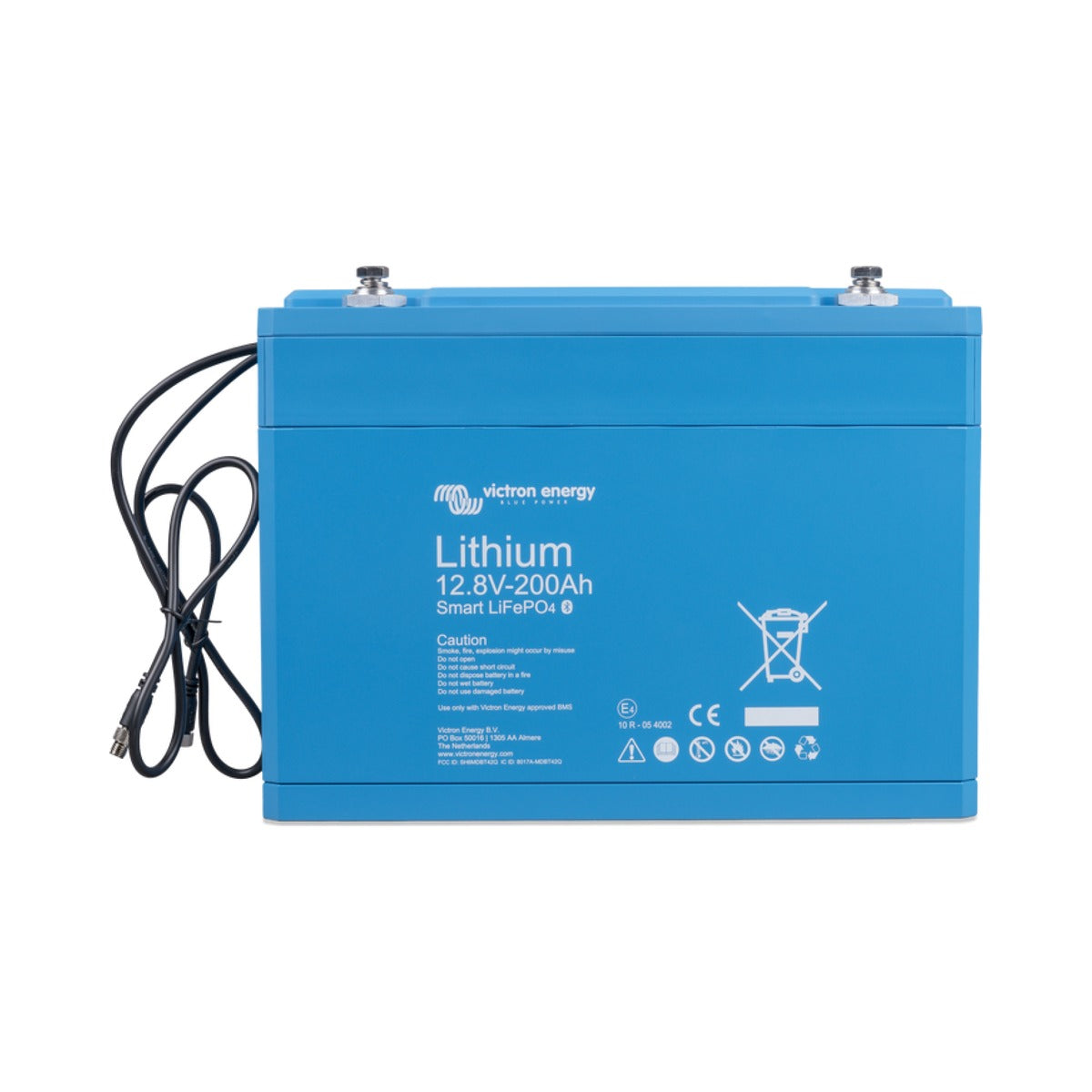

Victron Lithium Battery Smart 12.8V/200Ah
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Lithium Battery Smart 12,8V 200Ah is the highest-capacity 12 V cell in the Smart range, intended for large marine house banks where usable energy, weight saving and long cycle life are priorities. An LFP battery does not need to be returned to full charge after each cycle and tolerates being left partially charged, which suits cruising yachts and liveaboards where a lead-acid bank would sulfate during periods of deficit running.
Integrated Bluetooth reports cell voltages, temperature and alarm status to the VictronConnect app, so cell imbalance or a developing fault can be identified early. The battery stores 2560 Wh and delivers up to 400 A continuous, with low internal resistance and 92% round-trip efficiency that reduce charging losses compared with lead-acid.
It has integrated cell balancing and monitoring but is not a drop-in battery: it requires an external Battery Management System (for example a VE.Bus BMS, smallBMS or Lynx Smart BMS) for low-voltage, high-voltage and temperature protection. Cells can be wired in series, parallel or series/parallel to build 12 V, 24 V or 48 V banks.
PRODUCT DETAILS
- Lithium Iron Phosphate (LiFePO4) chemistry; 12,8 V nominal, 200 Ah, 2560 Wh
- Built-in Bluetooth for cell voltage, temperature and alarm monitoring in VictronConnect
- Requires an external Victron BMS (VE.Bus BMS, smallBMS or Lynx Smart BMS)
- Integrated cell balancing and cell monitoring
- Up to 400 A maximum continuous discharge current
- 92% round-trip efficiency and low internal resistance
- Cycle life of 2500 cycles at 80% depth of discharge
- Connect in series, parallel or series/parallel for 12 V, 24 V or 48 V banks
- IP22 protection; M8 power terminals
No compatible transducers listed for this product.
Key specifications
| Nominal voltage | 12.8 V |
| Nominal capacity | 200 Ah |
| Nominal energy | 2560 Wh |
| Maximum continuous discharge current | 400 A |
| Bluetooth | Yes |
| Protection class (IP) | IP22 |
Electrical
| Nominal capacity at 0°C | 160 Ah |
| Nominal capacity at -20°C | 100 Ah |
| Round trip efficiency | 92 % |
| Internal resistance | 0.8 mΩ |
Discharge
| Recommended continuous discharge current | ≤200 A |
| End of discharge voltage | 11.2 V |
Charge
| Charge voltage | 14.2 V recommended (range 14 V to 14.4 V) |
| Float voltage | 13.5 V |
| Maximum charge current | 400 A |
| Recommended charge current | ≤100 A |
Cycle life
| Cycle life at 80% DoD | 2500 cycles |
| Cycle life at 70% DoD | 3000 cycles |
| Cycle life at 50% DoD | 5000 cycles |
BMS / protection
| BMS connection | Male + female cable with M8 circular connector, length 50 cm |
| Cell measurements | Bluetooth cell voltage, temperature and alarm status monitoring via VictronConnect |
Operating conditions
| Operating temperature (discharge) | -20°C to +50°C |
| Operating temperature (charge) | +5°C to +50°C |
| Storage temperature | -45°C to +70°C |
| Humidity (non-condensing) | Max. 95 % |
Physical
| Power connection / terminals | M8 threaded inserts |
| Dimensions (h×w×d) | 237 x 321 x 152 mm |
| Weight | 20 kg |
