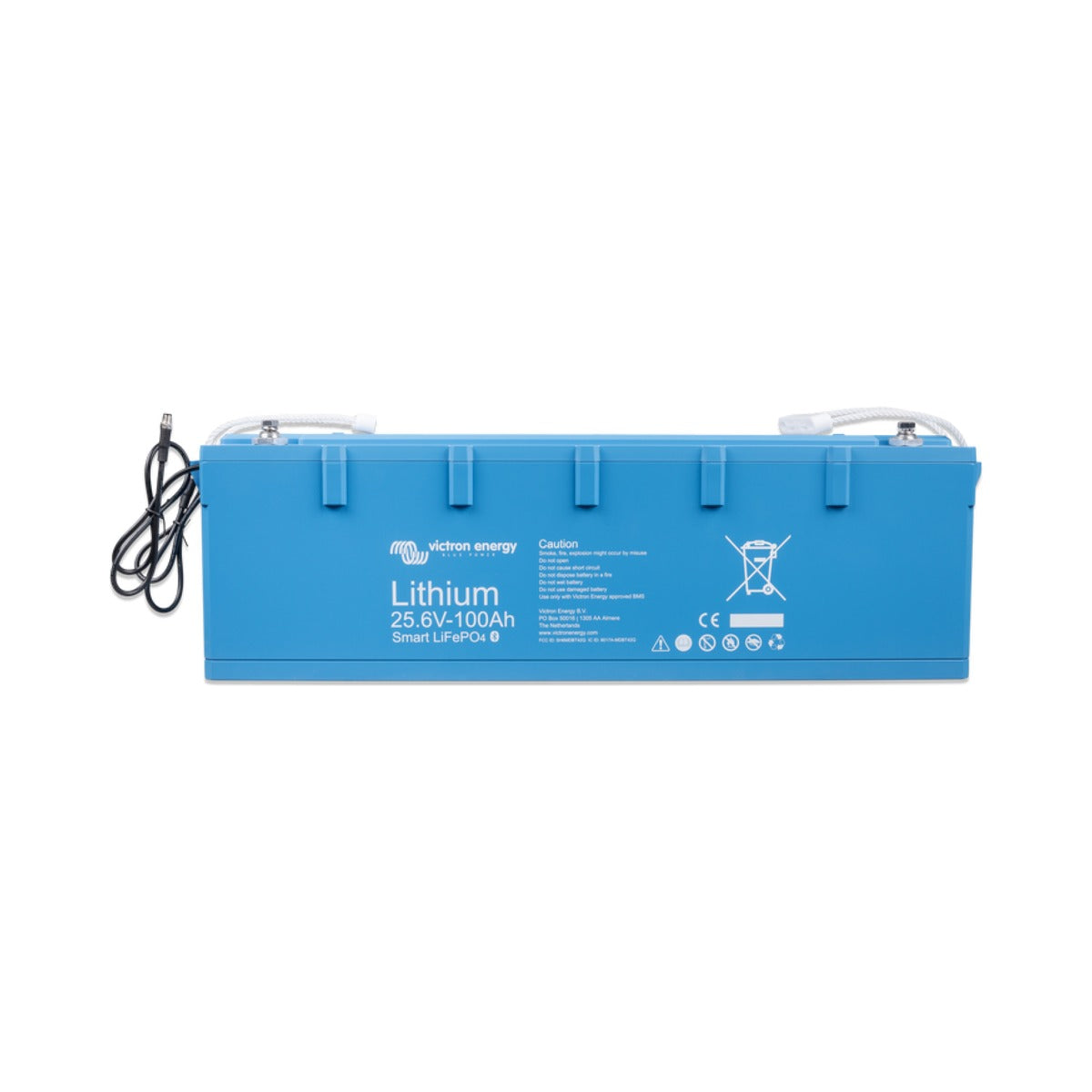

Victron Lithium Battery Smart 25.6V/100Ah
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Lithium Battery Smart 25,6V 100Ah is a 24 V Lithium Iron Phosphate (LiFePO4) cell for marine house banks built around a 24 V system. Using a 25,6 V battery rather than two 12 V units in series reduces the periodic balancing time a series string needs, which Victron recommends for 24 V installations. An LFP battery does not need to be returned to full charge after each cycle and tolerates being left partially charged, unlike a lead-acid bank which would sulfate during deficit running.
Integrated Bluetooth reports cell voltages, temperature and alarm status to the VictronConnect app, so cell imbalance or a developing fault can be identified early. The battery stores 2560 Wh and delivers up to 200 A continuous, with low internal resistance and 92% round-trip efficiency that reduce charging losses compared with lead-acid.
It has integrated cell balancing and monitoring but is not a drop-in battery: it requires an external Battery Management System (for example a VE.Bus BMS, smallBMS or Lynx Smart BMS) for low-voltage, high-voltage and temperature protection. Cells can be wired in series, parallel or series/parallel to build 24 V or 48 V banks.
PRODUCT DETAILS
- Lithium Iron Phosphate (LiFePO4) chemistry; 25,6 V nominal, 100 Ah, 2560 Wh
- Built-in Bluetooth for cell voltage, temperature and alarm monitoring in VictronConnect
- Requires an external Victron BMS (VE.Bus BMS, smallBMS or Lynx Smart BMS)
- Integrated cell balancing and cell monitoring
- Up to 200 A maximum continuous discharge current
- 92% round-trip efficiency and low internal resistance
- Cycle life of 2500 cycles at 80% depth of discharge
- Connect in series, parallel or series/parallel for 24 V or 48 V banks
- IP22 protection; M8 power terminals
No compatible transducers listed for this product.
Key specifications
| Nominal voltage | 25.6 V |
| Nominal capacity | 100 Ah |
| Nominal energy | 2560 Wh |
| Maximum continuous discharge current | 200 A |
| Bluetooth | Yes |
| Protection class (IP) | IP22 |
Electrical
| Nominal capacity at 0°C | 80 Ah |
| Nominal capacity at -20°C | 50 Ah |
| Round trip efficiency | 92 % |
| Internal resistance | 1.6 mΩ |
Discharge
| Recommended continuous discharge current | ≤100 A |
| End of discharge voltage | 22.4 V |
Charge
| Charge voltage | 28.4 V recommended (range 28 V to 28.8 V) |
| Float voltage | 27 V |
| Maximum charge current | 200 A |
| Recommended charge current | ≤50 A |
Cycle life
| Cycle life at 80% DoD | 2500 cycles |
| Cycle life at 70% DoD | 3000 cycles |
| Cycle life at 50% DoD | 5000 cycles |
BMS / protection
| BMS connection | Male + female cable with M8 circular connector, length 50 cm |
| Cell measurements | Bluetooth cell voltage, temperature and alarm status monitoring via VictronConnect |
Operating conditions
| Operating temperature (discharge) | -20°C to +50°C |
| Operating temperature (charge) | +5°C to +50°C |
| Storage temperature | -45°C to +70°C |
| Humidity (non-condensing) | Max. 95 % |
Physical
| Power connection / terminals | M8 threaded inserts |
| Dimensions (h×w×d) | 197 x 650 x 163 mm |
| Weight | 28 kg |
