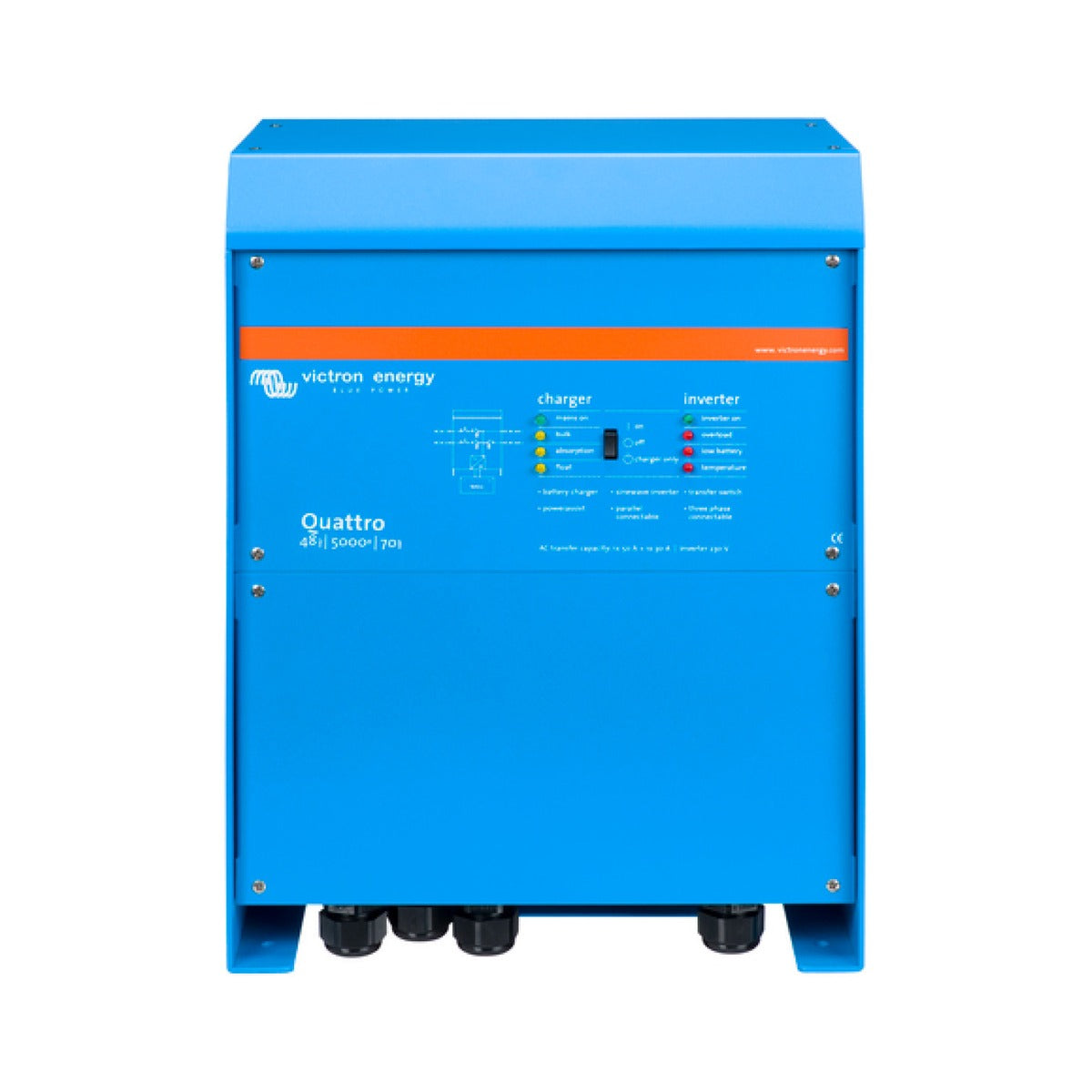

Victron Quattro 48/5000/70-100 120V
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Quattro 48/5000/70-100/100 is a combined inverter and battery charger for demanding 120 VAC North American marine and off-grid systems running from a 48 volt battery bank. It delivers 5000 VA of continuous pure sine wave power together with a 70 amp charger, and the 48 volt architecture keeps DC cable sizes and losses to a minimum on larger installations.
The Quattro has two AC inputs with an integrated transfer switch. It automatically connects to whichever source is active, for example the public grid and a generator, and switches over in under 20 milliseconds so sensitive electronics keep running without interruption. A second AC output powers non-critical loads only when an external source is present.
PowerControl and PowerAssist let you set a current limit on each input and boost limited shore or generator power with energy from the battery, avoiding nuisance tripping. The unit is lithium-ion battery compatible and integrates with Victron GX devices and the VRM portal for on-site and remote monitoring.
PRODUCT DETAILS
- 5000 VA continuous pure sine wave output at 120 VAC, 60 Hz
- 70 A house battery charger
- Two AC inputs with integrated transfer switch (under 20 ms changeover)
- PowerControl and PowerAssist boost limited shore or generator power
- Second AC output for non-critical loads
- Split-phase and three-phase capable, parallel up to 6 units
- Lithium-ion battery compatible
- Monitoring and control via GX devices, VictronConnect and the VRM portal
No compatible transducers listed for this product.
Key specifications
| System voltage | 48 V |
| Continuous output power | 5000 VA |
| Continuous output power at 25°C | 4000 W |
| Peak power | 10000 W |
| Maximum charge current | 70 A |
| Transfer switch | 2x 100 A |
AC inputs
| Number of AC inputs | 2 |
| AC input voltage range | 90 - 140 VAC |
| AC input frequency | 55 - 65 Hz |
| Maximum feed-through current | 2x 100 A |
Inverter
| DC input voltage range | 38 - 66 V |
| Output voltage / frequency | 120 VAC ±2%, 60 Hz ±0.1% |
| Cont. output power at 25°C (VA) | 5000 VA |
| Cont. output power at 25°C (W) | 4000 W |
| Cont. output power at 40°C (W) | 3700 W |
| Cont. output power at 65°C (W) | 3000 W |
| Peak power | 10000 W |
| Maximum efficiency | 95% |
| Zero load power | 35 W |
| Zero load power in Search mode | 15 W |
| Zero load power in AES mode | 30 W |
Charger
| Charge voltage 'absorption' | 57.6 V |
| Charge voltage 'float' | 55.2 V |
| Storage mode | 52.8 V |
| Charge current house battery | 70 A |
| Battery temperature sensor | Yes |
Connectivity & control
| VE.Bus communication port | Yes, for parallel, split phase and three phase operation, remote monitoring and system integration |
| General purpose comms port | 2x |
| Number of programmable relays | 3x |
| Auxiliary output | 50 A |
| Remote on/off | Yes |
Protection
| Protection | Output short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, 120 VAC on inverter output, input voltage ripple too high |
Environmental
| Operating temperature range | -40 to +65°C |
| Humidity (non-condensing) | Max 95% |
Physical
| Material & colour | Aluminium, blue RAL 5012 |
| Protection category | IP21 |
| Battery connection | Four M8 bolts (2 plus and 2 minus connections) |
| 230 VAC connection | Bolts M6 |
| Weight | 30 kg (66 lb) |
| Dimensions (h x w x d) | 444 x 328 x 240 mm |
Conformance
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, UL 1741 |
| Emission / Immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 |
