XSONIC AIRMAR B275LH-W
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

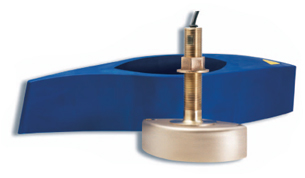

The Airmar B275LH-W is a bronze thru-hull CHIRP transducer built for serious offshore and commercial use. It combines a low band of 42 to 65 kHz for deep-water bottom tracking with a high band of 150 to 250 kHz for high-resolution detail, providing 123 kHz of total bandwidth and covering the popular 50 and 200 kHz working frequencies from a single fitting.
Its wide-beam high channel holds a constant 25 degree cone across the entire high band, giving roughly six times the coverage of a standard narrow high-frequency transducer and painting cleaner, wider fish arches. The low band narrows through 25 to 16 degrees to concentrate energy for deep returns.
Rated at 1 kW and fitted with a fast-response temperature sensor, the flush bronze housing suits fibreglass and timber hulls on sportfishing and commercial vessels of around 7.5 metres and up. The xSonic connector plugs directly into compatible Simrad, Lowrance and B&G sounder modules.
PRODUCT DETAILS
- Dual-band CHIRP: 42-65 kHz low and 150-250 kHz high
- Constant 25 degree wide high beam for up to six times the coverage
- 1 kW power rating for deep-water and offshore performance
- Flush bronze thru-hull housing for fibreglass and wood hulls
- Depth and fast-response water-temperature sensing
- xSonic connector for Simrad, Lowrance and B&G systems
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Acoustic
| Frequency | CHIRP: 42-65 kHz (low) and 150-250 kHz (high) |
| Total Bandwidth | 123 kHz |
| Power Rating | 1 kW |
Beam
| Low Band Beamwidth | 25 to 16 degrees |
| High Band Beamwidth | Constant 25 degrees |
Functions
| Measurements | Depth and water temperature |
Physical
| Mount Type | Thru-hull |
| Housing Material | Bronze |
Connection
| Connector | xSonic (swappable connector housing) |
| Cable Length | 12 m (supplied without connector) |
