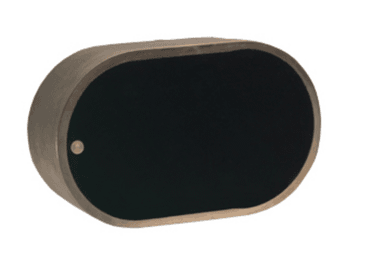

xSONIC Airmar PM275LH-W
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Airmar PM275LH-W is a pocket-mount, CHIRP-ready transducer that fits into a machined recess in the hull so the active face sits flush with the bottom for clean water flow at high speed. It offers the same wide-beam performance as the rest of the 275 series, combining a 42 to 65 kHz low band with a 150 to 250 kHz high band for 123 kHz of total bandwidth.
The high channel maintains a constant 25 degree beam right across its range, giving roughly twice the coverage of a conventional narrow high-frequency transducer and clearer separation of baitfish and game fish in the upper water column. The low band tightens through 25 to 16 degrees to focus energy for deep bottom tracking.
Rated at 1 kW with a fast-response temperature sensor, the pocket housing suits planing fibreglass and timber hulls of around 8 metres and above, and connects to compatible Simrad, Lowrance and B&G sounders through the xSonic connector.
PRODUCT DETAILS
- Dual-band CHIRP: 42-65 kHz low and 150-250 kHz high
- Constant 25 degree wide high beam for double the coverage
- Pocket-mount housing sits flush for clean flow at speed
- 1 kW power rating for shallow to mid-water fishing
- Depth and fast-response water-temperature sensing
- xSonic connector for Simrad, Lowrance and B&G systems
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Acoustic
| Frequency | CHIRP: 42-65 kHz (low) and 150-250 kHz (high) |
| Total Bandwidth | 123 kHz |
| Power Rating | 1 kW |
Beam
| Low Band Beamwidth | 25 to 16 degrees |
| High Band Beamwidth | Constant 25 degrees |
Functions
| Measurements | Depth and water temperature |
Physical
| Mount Type | Pocket / keel mount |
Connection
| Connector | xSonic (swappable connector housing) |
