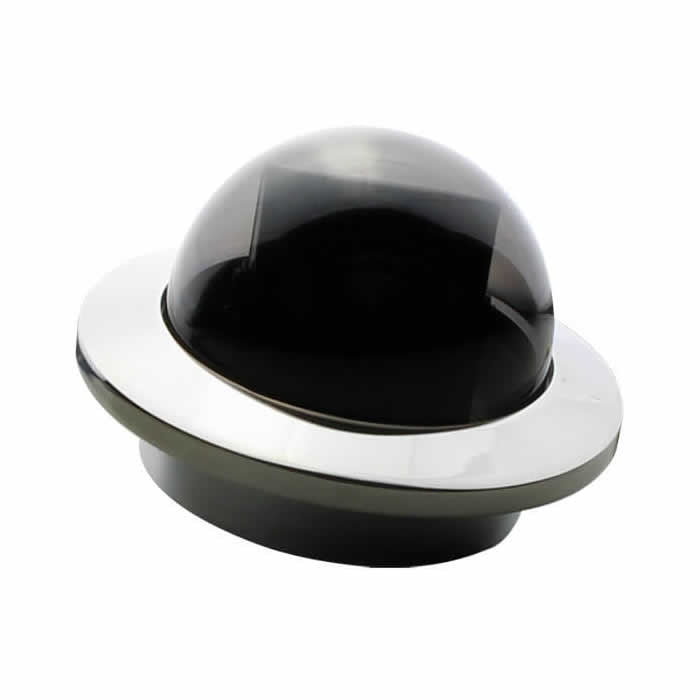

Iris IRIS036 4-in-1 HD Stainless Dome Camera, Polished
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The IRIS036 packs a selectable 4-in-1 HD camera core into a miniature flush-mount housing designed to deliver high-quality video while blending into a boat's aesthetic. A single output switches between CVBS composite (for legacy plotters and monitors) and three HD-analogue formats, HD-TVI, HD-CVI and AHD, giving up to 1080p high definition over conventional coaxial cable. A marine-grade 316 stainless bezel and heavy smoked dome keep the camera small, elegant and unobtrusive, and an integrated on-screen menu lets you configure the video format along with features such as mirror image, noise reduction and wide dynamic range.
Advanced wide dynamic range processing helps deliver crisp, clear images even in bright sunshine and high-contrast scenes. Installation is straightforward with a 62mm panel cutout: the camera is screwed into place, positioned using the manually adjustable two-axis gimbal mount, and finished with the decorative bezel. Set-up is carried out using an in-line thumb-stick controller built into the cable tail.
Suitable for internal or external use, the IRIS036 is a versatile solution as a backup or transom camera, for companionway and deck monitoring, and as part of an onboard security system. In CVBS mode it is compatible with any chart plotter with a composite video input, televisions via an AV input and dedicated video monitors, while the HD-analogue modes connect to compatible HD displays or Iris recorders. The IRIS036 is the analogue version of the x36 stainless housing; a network IP model, the IRIS436, is available where an Ethernet camera is required.
PRODUCT DETAILS
- Discreet 316 stainless steel housing only 86mm diameter
- Selectable 4-in-1 video: CVBS composite plus HD-TVI, HD-CVI and AHD
- Up to 1080p high definition in the HD-analogue modes
- Supplied with a 3.6mm lens (80 degree field of view)
- Heavy smoked privacy dome, high-polish or white powder-coat bezel options
- On-screen menu for video format, WDR, noise reduction and mirror image
- In-line thumb-stick controller for set-up
- 62mm panel cutout with two-axis gimbal mount, IP66 rated
- Analogue version of the x36 housing; IP model IRIS436 also available
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Camera
| Sensor | 1/3" Sony CCD |
| Resolution | 1080p in HD analogue modes (TVI/CVI/AHD) |
| Mirroring | Horizontal & vertical, configurable via OSD menu |
Lens
| Lens | 3.6mm standard |
| Horizontal Field of View | 80 degrees |
Video Output
| Signal | 1Vp-p CVBS composite video, 75 ohm |
| Video Format | Switchable 4-in-1: CVBS (analogue), HD-TVI, HD-CVI, AHD |
Connectivity
| Connections | BNC 75 ohm female connector / DC power socket |
Power
| Power | 12VDC, less than 200mA max |
Compatibility
| Compatibility | All MFDs with composite video input, TV via AV input, CMAC camera management systems |
Physical
| Material | 316 stainless steel bezel with acrylic dome |
| Dimensions | 86.5mm diameter x 58mm (62mm panel cutout) |
| Weight | 0.25 kg |
Environmental
| Operating Temperature | -30 to +60 degrees C |
| Ingress Protection | IP66 |
