Garmin

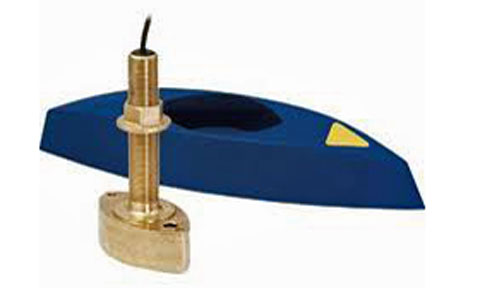

Garmin B45 Narrow Stem Through Hull with Fairing Block 8 pin
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin B45, based on the Airmar B45, is the smallest and most economical bronze narrow-stem thru-hull transducer in the range, supplied here with a fairing block for installation on angled hulls. Its narrow stem needs only a 22 mm hole, making it a tidy choice for sailing yachts and other vessels where a compact, low-drag thru-hull fitting is preferred.
It operates at 50 and 200 kHz with 600 W of power and provides both depth and water temperature, reading to between 800 and 1,200 ft. The 45 and 12 degree beams suit a mix of wider searching and deeper, more focused returns. The B45 is intended for fibreglass and wood hulls and supports deadrise angles from 0 to 26 degrees with the supplied fairing.
PRODUCT DETAILS
- 50/200 kHz dual-frequency operation with 600 W output
- Bronze narrow-stem thru-hull, needs only a 22 mm hole
- Supplied with fairing block for 0 to 26 degree deadrise
- 45 degree and 12 degree beams for searching and depth detail
- Depth and temperature data to between 800 and 1,200 ft
- 8-pin connector; for fibreglass and wood hulls
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
General
| Transducer type | Dual-frequency thru-hull depth/temperature sounder (Airmar B45) |
| Mounting | Bronze narrow-stem thru-hull with fairing block; requires a 22 mm hole |
| Hull suitability | Fibreglass and wood hulls |
| Connector | 8-pin |
| Depth and temperature | Depth and temperature (D/T) |
Sonar
| Frequency | 50 / 200 kHz |
| Transmit power | 600 W |
| Beamwidth | 45 deg (50 kHz) / 12 deg (200 kHz) |
| Maximum depth | 800-1,200 ft |
Physical
| Cable length | 39 ft (12 m) |
| Supported deadrise angle | 0-26 degrees |
Compatibility
| Compatible systems | Garmin sounders that accept an 8-pin 50/200 kHz dual-frequency transducer, including GPSMAP sonar combos and GSD-series remote sounder modules (GSD 24/GSD 26). Check the host unit connector before ordering. |
