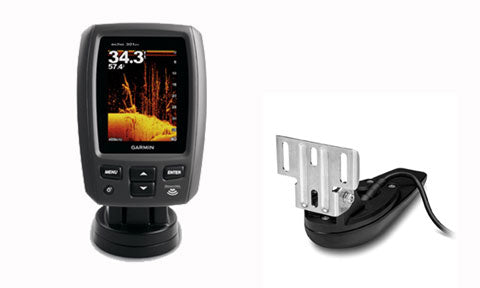

Garmin echo 301dv with 77 200kHz Transom Mount Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin echo 301dv is a compact 3.5 inch fishfinder that combines Garmin HD-ID traditional sonar with DownVu scanning sonar on a bright 256-colour, sunlight-readable display. Supplied with an all-in-one 77/200 kHz HD-ID and DownVu transom mount transducer, it shows traditional and near-photographic DownVu views of fish and structure at the same time.
With 300 W RMS power, the echo 301dv reaches as deep as 533 m (1,750 ft), and DownVu high-frequency scanning gives a clear, detailed picture of the bottom directly beneath the boat. The unit comes with a quick-release tilt and swivel mount along with transom and low-profile trolling motor mounting kits. This is a legacy model supplied with its transducer.
PRODUCT DETAILS
- Bright 3.5 inch 256-colour sunlight-readable display
- Garmin HD-ID traditional plus DownVu scanning sonar
- All-in-one 77/200 kHz HD-ID and DownVu transom transducer included
- 300 W RMS; maximum depth 533 m (1,750 ft) at 77 kHz
- Transom and low-profile trolling motor mounting kits included
- Quick-release tilt and swivel mount
No exploded diagram available for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| GPS | None (sonar fishfinder only) |
Display
| Display size | 3.5 in diagonal (8.9 cm) |
| Display resolution | QVGA, 320 x 240 pixels |
| Display type | 256-colour, sunlight-readable |
Sonar
| Included transducer | All-in-one 77/200 kHz HD-ID and DownVu transom mount transducer |
| Sonar type | Garmin HD-ID traditional plus DownVu scanning sonar |
| Frequencies | 77 / 200 kHz traditional; 455 / 800 kHz DownVu |
| Transmit power | 300 W (RMS) / 2,400 W (peak-to-peak) |
| Maximum depth | 533 m (1,750 ft) at 77 kHz freshwater (transducer dependent) |
Physical
| Waterproof rating | IPX7 |
| Power input | 10 to 28 Vdc |
| Compass-safe distance | 250 mm (10 in) |
| Mount | Quick-release tilt/swivel mount; includes transom and low-profile trolling motor mounting kits |
