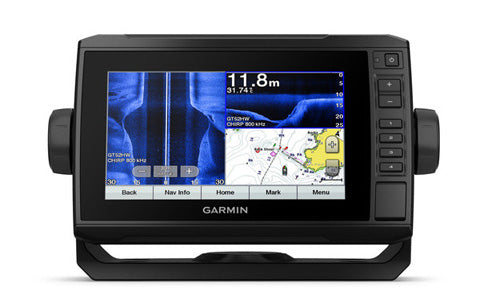

Garmin Echomap Plus 75sv Chartplotter no transducer Bluechart G2 UK
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin ECHOMAP Plus 75sv is a 7 inch keyed chartplotter and fishfinder that adds Garmin SideVu scanning sonar to the CHIRP traditional and ClearVu sonar of the 75cv, giving you a clear, photo like view to either side of your boat. The sunlight readable WVGA display, preloaded UK and Ireland BlueChart g2 cartography and Quickdraw Contours mapping cover both navigation and custom mapping.
Built in Wi-Fi connects to the ActiveCaptain app, while NMEA 2000 and NMEA 0183 let you integrate sensors, autopilot and other equipment. This unit is supplied without a transducer, so you can fit the SideVu capable transducer best suited to your boat.
PRODUCT DETAILS
- 7 inch sunlight readable WVGA display, 800 x 480 resolution
- CHIRP traditional, Garmin ClearVu and SideVu scanning sonar
- Preloaded UK and Ireland BlueChart g2 cartography
- Garmin Quickdraw Contours mapping creates custom maps
- Built in Wi-Fi plus NMEA 2000 and NMEA 0183 connectivity
- Supplied without transducer; IPX7 waterproof housing
No exploded diagram available for this product.
Garmin Panoptix PS21 Forward Sonar Transducer Trolling Motor Mounting Ethernet
Garmin Panoptix PS31 Forward Sonar Transducer Transom or Trolling Motor Mounting Ethernet
Garmin Panoptix PS30 Down Sonar Transducer Transom or Trolling Motor Mounting Ethernet
Garmin Panoptix PS60 Down Sonar Transducer Thru Hull Mounting with Fairing Block Ethernet
No compatible products found.
Display
| Display size | 15.5 x 8.6 cm (6.1 x 3.4 in.), 7 in. diagonal |
| Display resolution | WVGA, 800 x 480 pixels |
| Display type | Colour, keypad controlled |
GPS/GNSS
| Preloaded charts | UK and Ireland BlueChart g2 |
| Waypoints / routes / tracks | 5,000 waypoints; 100 routes; 50,000 track points, 50 saved tracks |
Sonar
| Built-in sonar | CHIRP traditional, Garmin ClearVu and SideVu scanning sonar |
| Sonar frequencies | Traditional 50, 77, 83, 200 kHz; CHIRP ClearVu and SideVu 260/455/800 kHz |
| Sonar transmit power (RMS) | 500 W |
| Sonar depth | 701 m (2,300 ft.) at 77 kHz (transducer dependent) |
Connectivity
| Networking | NMEA 2000, NMEA 0183, Wi-Fi (ActiveCaptain) |
| Wireless frequency | 2.4 GHz @ 18.5 dBm nominal |
| NMEA 2000 LEN | 1 @ 9 Vdc (75 mA max.) |
| Memory card | 1 microSD card slot; 32 GB max. card size |
Physical
| Dimensions (W x H x D) | 25.0 x 13.9 x 5.1 cm (9.8 x 5.5 x 2.0 in.) |
| Weight | 0.77 kg (1.7 lb.) |
| Material | Polycarbonate plastic |
| Compass-safe distance | 65 cm (25.6 in.) |
Electrical
| Input voltage | 9 to 18 Vdc |
| Max. power draw | 15 W |
| Fuse | 3 A, 125 V fast-acting |
Environmental
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C (5 to 131 F) |
