Garmin

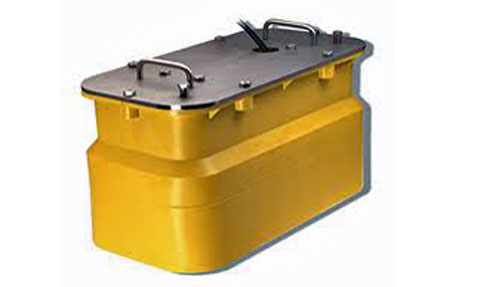

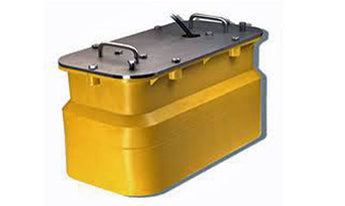

Garmin R199 2kW In-Hull Depth Transducer with Fitting Kit 8 pin
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The R199 is the most powerful in-hull transducer designed for the Garmin GSD 24 advanced sounder module. It delivers the full 2 kW deep-water performance of the thru-hull R99 while shooting its signal through a solid fibreglass hull, so there is no need to drill below the waterline and no exposed housing to foul or damage when the boat is trailered.
Operating at 50 kHz and 200 kHz, it reaches depths of 2,500 to 4,000 ft and uses a narrow beam of 8 x 17 degrees at low frequency and 5 degrees at high frequency to hold target detail well into deep water. The unit reports depth and connects through an 8-pin plug on a 39 ft cable.
The R199 accommodates hull deadrise angles from 0 to 22 degrees and must be bonded to solid fibreglass no more than 1.5 in thick; it is not suitable for cored hulls. When connecting to an older 6-pin Garmin sounder, transducer adapter cable 010-11612-00 is required.
PRODUCT DETAILS
- 2 kW in-hull transducer, the most powerful for the Garmin GSD 24 module
- Dual 50/200 kHz operating frequency with 8x17/5 degree beamwidth
- Deep-water capability of 2,500 to 4,000 ft
- Shoots through a solid fibreglass hull, no drilling below the waterline
- 8-pin connector on a 39 ft cable; supports 0 to 22 degree deadrise
- For solid fibreglass up to 1.5 in thick, not for cored hulls
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
General
| Model | Airmar R199 |
| Mounting type | In-hull |
| Functions | Depth |
Sonar
| Operating frequency | 50/200 kHz |
| Power | 2 kW RMS |
| Beamwidth (LF/HF, -3dB) | 8 x 17 / 5 degrees |
| Maximum depth | 2,500 to 4,000 ft |
Physical
| Connector | 8-pin |
| Cable length | 39 ft |
| Supported deadrise | 0 to 22 degrees |
| Maximum hull thickness | 1.5 in (solid fibreglass only, not for cored hulls) |
Compatibility
| Compatible sounder module | Pairs with the Garmin GSD 24 remote sounder (transducers up to 2 kW). When using with a 6-pin Garmin sounder, transducer adapter cable 010-11612-00 is required. |
