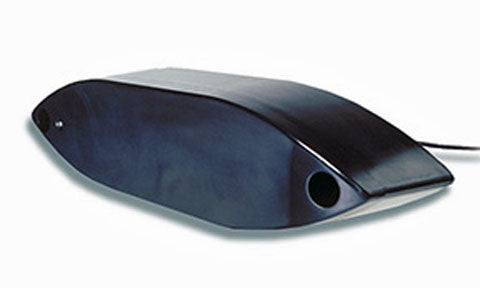

Garmin R99 2kW Through Hull Depth and Temperature Transducer 8 pin
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The R99 is the most powerful thru-hull transducer designed for the Garmin GSD 24 advanced sounder module. This 2 kW plastic housing operates at both 50 kHz and 200 kHz and reaches depths of 2,500 to 4,000 ft, making it suited to serious offshore and deep-water fishing where bottom detail and water-column targets need to be read well below the range of single-element transducers.
Its narrow beam, 8 x 17 degrees at low frequency and 5 degrees at high frequency, concentrates acoustic energy onto the target for crisp returns at depth. The unit reports both depth and temperature and terminates in an 8-pin connector on a 39 ft cable. It is an external thru-hull design and is normally installed with a high-performance fairing to give a truly vertical beam.
The R99 supports hull deadrise angles from 0 to 25 degrees. When connecting to an older 6-pin Garmin sounder, transducer adapter cable 010-11612-00 is required.
PRODUCT DETAILS
- 2 kW thru-hull transducer, the most powerful for the Garmin GSD 24 module
- Dual 50/200 kHz operating frequency with 8x17/5 degree beamwidth
- Deep-water capability of 2,500 to 4,000 ft
- Reports both depth and water temperature
- 8-pin connector on a 39 ft cable; supports 0 to 25 degree deadrise
- External thru-hull housing, install with a high-performance fairing
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
General
| Model | Airmar R99 |
| Mounting type | Thru-hull (external, requires fairing) |
| Functions | Depth and temperature |
Sonar
| Operating frequency | 50/200 kHz |
| Power | 2 kW RMS |
| Beamwidth (LF/HF, -3dB) | 8 x 17 / 5 degrees |
| Maximum depth | 2,500 to 4,000 ft |
Physical
| Housing material | Plastic |
| Connector | 8-pin |
| Cable length | 39 ft |
| Supported deadrise | 0 to 25 degrees |
Compatibility
| Compatible sounder module | Pairs with the Garmin GSD 24 remote sounder (transducers up to 2 kW). When using with a 6-pin Garmin sounder, transducer adapter cable 010-11612-00 is required. |
