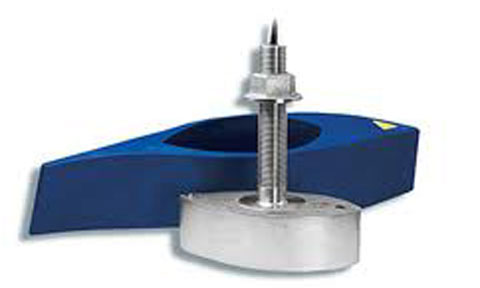

Garmin SS270 Through Hull Widebeam Depth and Temperature Transducer 8 pin
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The SS270 is a high-performance 1 kW stainless steel thru-hull transducer built for anglers who want a wider view of shallow to mid-water depths. Its wide 25 degree beam covers around four times the area at 200 kHz of a narrow-beam unit such as the B260, so more fish and structure are visible across the water column on a single pass.
Operating at 50 kHz and 200 kHz, the SS270 holds the same 25 degree beam at both frequencies, which means a split-screen display shows matching coverage and fish appear in the same size and position on each side. It reaches depths of 1,350 to 2,000 ft and reports both depth and temperature through an 8-pin connector on a 39 ft cable.
The stainless steel housing suits aluminium and other metal hulls and supports deadrise angles from 0 to 20 degrees. When connecting to a 6-pin Garmin sounder, transducer adapter cable 010-11612-00 is required.
PRODUCT DETAILS
- 1 kW stainless steel thru-hull transducer with a wide 25 degree beam
- Around four times the coverage at 200 kHz of a narrow-beam B260
- Equal 25 degree beam at 50 and 200 kHz for matching split-screen views
- Depth capability of 1,350 to 2,000 ft, reports depth and temperature
- 8-pin connector on a 39 ft cable; supports 0 to 20 degree deadrise
- Stainless steel housing suited to aluminium and other metal hulls
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
General
| Model | Airmar SS270W widebeam |
| Mounting type | Thru-hull |
| Functions | Depth and temperature |
Sonar
| Operating frequency | 50/200 kHz |
| Power | 1 kW RMS |
| Beamwidth (LF/HF, -3dB) | 25 / 25 degrees (wide beam, equal at both frequencies) |
| Maximum depth | 1,350 to 2,000 ft |
Physical
| Housing material | Stainless steel |
| Connector | 8-pin |
| Cable length | 39 ft |
| Supported deadrise | 0 to 20 degrees |
Compatibility
| Compatible sounder module | Pairs with the Garmin GSD 24 remote sounder (transducers up to 2 kW). When using with a 6-pin Garmin sounder, transducer adapter cable 010-11612-00 is required. |
