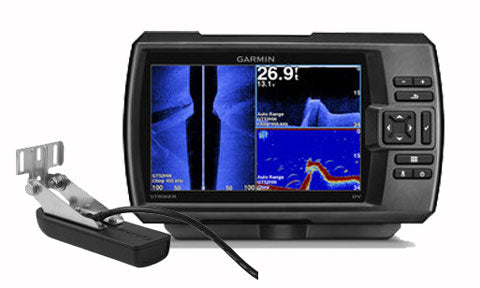

Garmin Striker 7sv GPS Fishfinder with GT52HW-TM transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The STRIKER 7sv is the most capable display in the original STRIKER range, adding CHIRP SideVu to the CHIRP traditional and CHIRP ClearVu sonars for a near-photographic view of structure both below and to either side of the boat. The bright 7-inch WVGA screen keeps it all clear, and the built-in, high-sensitivity GPS marks and returns you to hot spots, slipways and docks while showing your speed over ground.
It is a fishfinder rather than a chartplotter, so there are no preloaded charts, but waypoints and routes can be shared with other STRIKER and echoMAP units. The supplied GT52HW-TM transducer carries traditional, ClearVu and SideVu elements with transom and trolling-motor hardware and a temperature sensor, and the rugged IPX7 housing handles open-water and ice fishing.
PRODUCT DETAILS
- 7-inch WVGA colour display with keypad control
- CHIRP traditional, CHIRP ClearVu and CHIRP SideVu scanning sonar
- Built-in high-sensitivity GPS to mark and navigate to waypoints
- Built-in flasher and Sonar History Rewind
- Includes GT52HW-TM transducer with transom and trolling-motor mounts
- Rugged, waterproof to IPX7
No exploded diagram available for this product.
No compatible products found.
General
| Type | Fishfinder with built-in GPS (not a chartplotter; no preloaded charts) |
| Control | Keypad operation |
Display
| Display size | 7 in. (17.8 cm) diagonal |
| Display resolution | 800 x 480 pixels |
| Display type | WVGA colour |
Sonar
| Sonar technology | Garmin CHIRP traditional sonar, Garmin CHIRP ClearVu and Garmin CHIRP SideVu scanning sonar |
| Traditional frequencies | 77/200 kHz CHIRP |
| ClearVu and SideVu frequencies | 455/800 kHz |
| Maximum depth | 2,300 ft (701 m) freshwater; 1,100 ft (335 m) saltwater |
| Transducer included | Garmin GT52HW-TM transom-mount transducer (12-pin) with built-in temperature sensor |
| Sonar features | Built-in flasher, Sonar History Rewind, Smooth Scaling, A-scope, split-screen zoom |
GPS
| GPS | Integrated high-sensitivity GPS; mark and navigate to waypoints, view boat speed |
| Waypoint sharing | Share waypoints and routes with other STRIKER and echoMAP units |
Physical
| Dimensions (W x H x D) | 23.5 x 14.0 x 5.8 cm (9.3 x 5.5 x 2.3 in.) |
| Weight | 0.68 kg (24.0 oz) |
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C (5 to 131 F) |
| Power source | 10 to 20 Vdc; rated current 1 A |
