Garmin

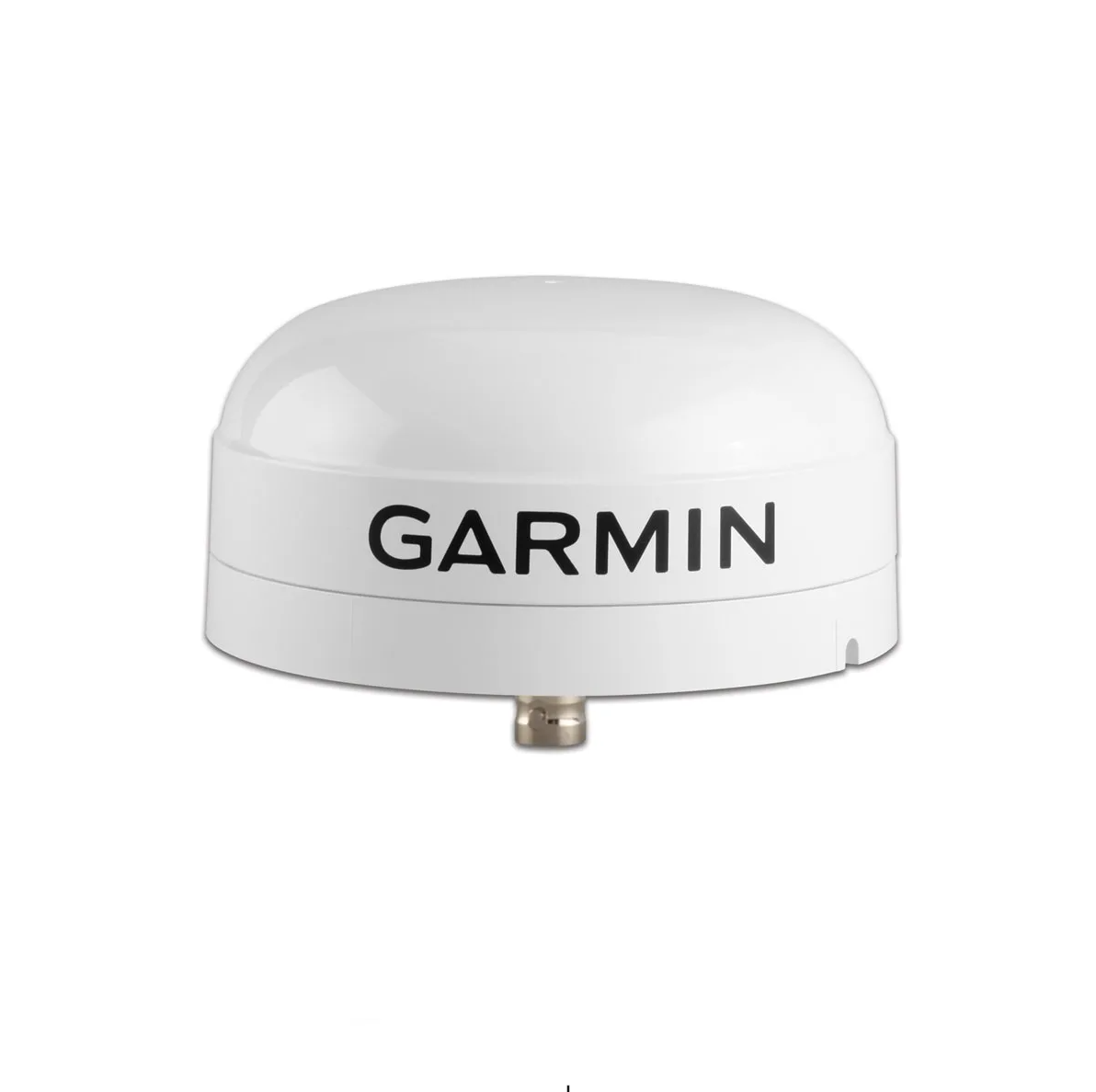

GA™ 38 GPS and GLONASS Antenna for Cortex® V1 and M1, White
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GA 38 is an external GPS and GLONASS antenna that delivers a fast, reliable position fix to a compatible Garmin chartplotter, AIS unit or the Cortex V1 and M1 systems. Drawing on both the GPS and GLONASS satellite constellations, it improves position accuracy and acquisition compared with relying on an internal antenna, particularly where sky view is partly obstructed.
This white version connects to the host device using a BNC connector at the port labelled ANTENNA or EXT GPS. It can be surface mounted, fitted to a standard 1 inch pole mount, or installed under a fibreglass deck using the supplied under-deck kit, giving flexibility for almost any boat. The fully gasketed, high-impact housing is IPX7 water rated for the marine environment.
PRODUCT DETAILS
- External GPS and GLONASS antenna for fast, accurate positioning
- Compatible with Garmin chartplotters, AIS units and the Cortex V1 and M1
- BNC connector to the ANTENNA or EXT GPS port on the host device
- Surface, pole or under-deck mounting (under-deck kit included on white model)
- Fully gasketed high-impact housing
- IPX7 water rated
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
GPS
| Satellite systems | GPS and GLONASS |
Connectivity
| Connector | BNC (to ANTENNA or EXT GPS port) |
| Mounting | Surface, 1 in. pole, or under-deck (under-deck kit included) |
Physical
| Dimensions (diameter x height) | 91.6 x 49.5 mm (3.6 x 1.95 in.) |
| Weight | 201 g (7.1 oz.) |
| Compass-safe distance | 114 mm (4.5 in.) |
| Case material | Fully gasketed, high-impact plastic alloy |
Environmental
| Temperature range | -30 to 80°C (-22 to 176°F) |
| Water rating | IEC 60529 IPX7 |
No videos available for this product.
No downloads available for this product.
No frequently asked questions for this product.
