Victron

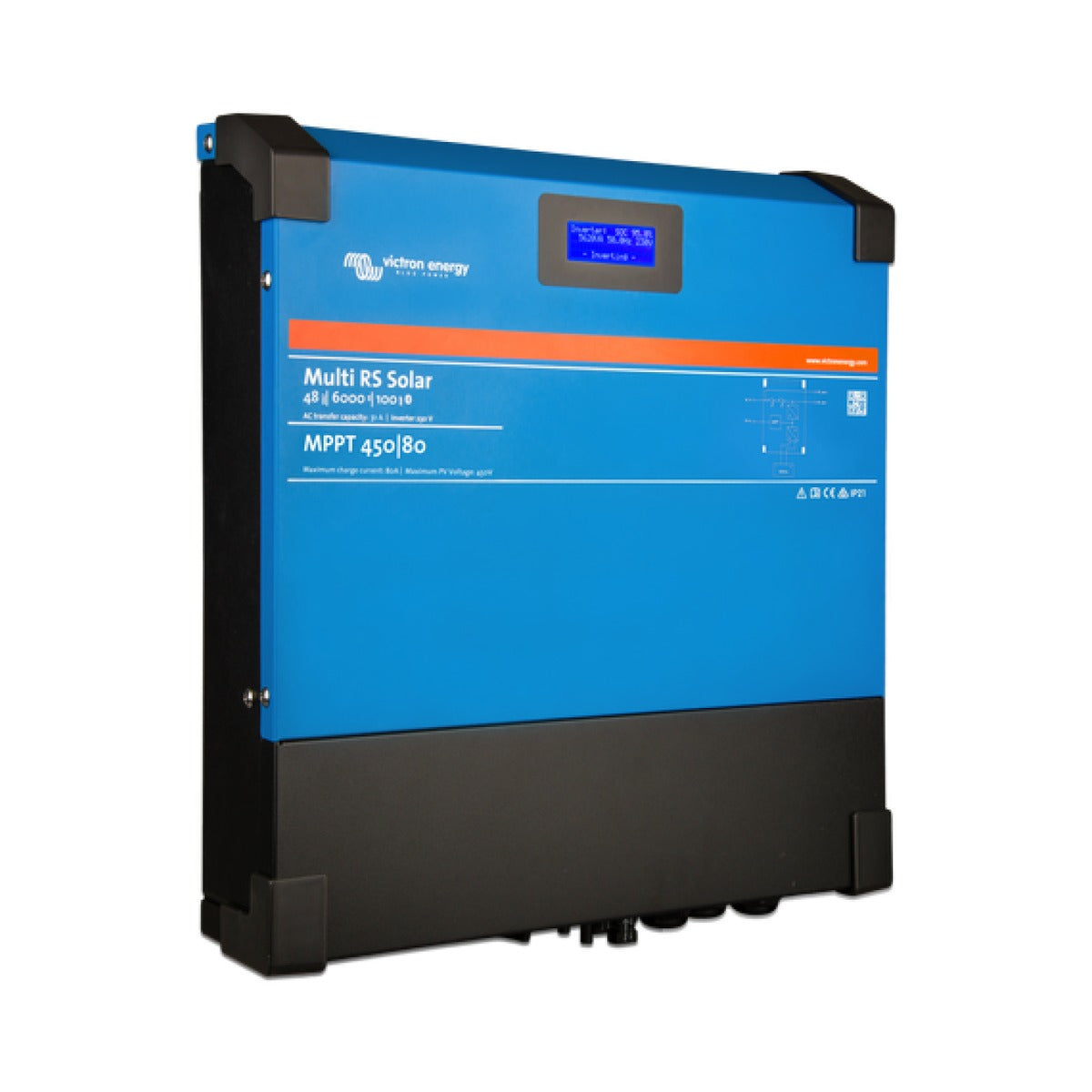

Victron Multi RS Solar 48/6000/100
£2,794.80
/
Tax included.
Shipping calculated at checkout.
PMR482602000
A 48 volt 6 kVA hybrid inverter/charger with a built-in dual-tracker MPPT solar charger and 450 V PV input. It stores surplus solar for night use, boosts limited grid or generator power with PowerAssist, and runs in hybrid, backup, off-grid, generator or PV-inverter modes. Bluetooth and VictronConnect built in.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
PRODUCT DETAILS
- 6 kVA continuous pure sine wave output at 230 VAC, 50 Hz
- Built-in dual-tracker MPPT solar charger, up to 6 kWp PV
- 450 V maximum PV array voltage for long, efficient strings
- 100 A total DC charge current (AC plus solar)
- Hybrid, backup, off-grid, generator and PV-inverter modes
- PowerControl and PowerAssist boost limited grid or generator power
- Built-in Bluetooth, display and VictronConnect app support
- VE.Can and VE.Direct for GX and VRM system monitoring
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Key specifications
| System voltage | 48 V |
| Continuous output power | 6000 VA |
| Continuous output power at 25°C | 4600 - 5200 W |
| Peak power | 9000 W for 3 seconds |
| Maximum charge current | 100 A |
| Transfer switch | 50 A |
AC inputs
| Number of AC inputs | 1 |
| AC input voltage range | 187 - 265 VAC |
| AC input frequency | 45 - 65 Hz |
| Maximum feed-through current | 50 A |
Inverter
| DC input voltage range | 38 - 62 V |
| Output voltage / frequency | 230 VAC ±2%, 50 Hz ±0.1% (adjustable to 240 VAC and 60 Hz) |
| Cont. output power at 25°C (W) | Increases linearly from 4600 W at 46 VDC to 5200 W at 52 VDC |
| Cont. output power at 40°C (W) | 4500 W |
| Cont. output power at 65°C (W) | 3000 W |
| Peak power | 9 kW for 3 seconds |
| Time-limited power 1 (cold start) | 7 kW for 4 minutes |
| Maximum efficiency | 96.5% at 1 kW load |
| Maximum continuous output current | 25 Aac |
| Maximum output fault current | 45 A short-circuit output current |
| Zero load power | 20 W |
Charger
| AC input | 230 VAC nominal, 187 - 265 VAC range, 50 Hz nominal, 45 - 65 Hz |
| Charge voltage 'absorption' | 57.6 V (adjustable) |
| Charge voltage 'float' | 55.2 V (adjustable) |
| Maximum charge current | 100 A DC total (AC + PV) |
| Maximum charge current at 40°C | 88 A @ 57.6 VDC from AC |
| Battery temperature sensor | Included |
Solar charger
| Number of MPPT trackers | 2 |
| Maximum open circuit PV array voltage | 450 V |
| MPPT operating voltage range | 65 - 450 V |
| Start-up voltage | 120 V |
| Maximum PV conversion power | 6 kW total, 3 kW per tracker |
| Maximum operational PV input current | 12 A |
| Maximum PV short circuit current | 16 A |
| Earth leakage trip level | 30 mA |
Connectivity & control
| Data communications ports | VE.Direct, VE.Can and Bluetooth |
| Programmable relay | Yes |
| Auxiliary output | Yes (AC-out-2 for non-critical loads) |
| Remote on/off | Yes |
Protection
| Protection | Output short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, 230 VAC on inverter output, solar earth leakage |
Environmental
| Operating temperature range | -40 to +65°C (fan assisted cooling) |
| Humidity (non-condensing) | Max 95% |
| Maximum altitude | 2000 m |
Physical
| Material & colour | Steel, blue RAL 5012 |
| Protection category | IP21, Protective Class I |
| Battery connection | M8 bolts |
| 230 VAC connection | Screw terminals 10 mm² (6 AWG) |
| Weight | 12.3 kg |
| Dimensions (h x w x d) | 462 x 425 x 127 mm |
Conformance
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2, IEC 62040, IEC 62477 |
| Emission / Immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 |
No videos available for this product.
What makes the Multi RS Solar different from a standard inverter/charger?
It has a built-in dual-tracker MPPT solar charger, so it combines an inverter, a battery charger and a solar charge controller in one unit. Solar energy can be stored in the battery and used at night or during peak demand.
How much solar can I connect?
The integrated MPPT accepts up to 6 kWp of PV across two trackers (3 kWp per tracker), with a maximum PV array voltage of 450 V. PV capacity can be extended further with additional AC-coupled or DC-coupled solar chargers.
Can it run without a battery?
Yes. In PV-inverter mode it works as a grid-tied PV inverter without a battery, so you can start simple and add storage later.
What operating modes does it support?
Hybrid, backup, off-grid, generator and PV-inverter modes. In hybrid mode it stores surplus solar for later use and supplies extra power from the battery when demand exceeds grid or generator capacity.
Does it have Bluetooth?
Yes. A built-in Bluetooth Smart connection lets you monitor and configure the unit with the VictronConnect app, and it also has an on-board display for battery, inverter and solar parameters.
Can I connect it to a GX device?
Yes. It connects to a GX device such as the Cerbo GX via VE.Can for system monitoring and control, and the VE.Direct port connects to a GlobalLink 520 for remote data monitoring.
