This product has been discontinued by Lowrance and is no longer available to buy.
Lowrance

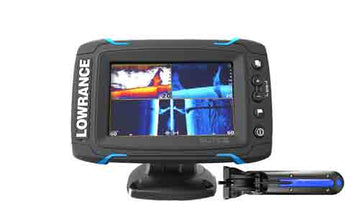

Lowrance Elite-5 Ti Mid High TotalScan Transducer Uk C-Map Chart
Description
The Lowrance Elite-5 Ti is a discontinued 5-inch touchscreen fishfinder and chartplotter from the original Elite Ti series, here supplied with the Mid/High TotalScan all-in-one transducer and a C-MAP chart card for UK and Ireland. It combined a high-resolution SolarMAX display with CHIRP and DownScan sonar, an internal high-speed GPS antenna and built-in cartography.
Built-in Wi-Fi and Bluetooth allowed software updates and Insight Genesis custom mapping directly from the water.
The compact Elite Ti series has been replaced in the current Lowrance range by the Elite FS.
PRODUCT DETAILS
- 5-inch high-resolution SolarMAX touchscreen display
- CHIRP sonar with DownScan Imaging
- Supplied with Mid/High TotalScan all-in-one transducer
- C-MAP UK and Ireland chart card included
- Internal high-speed GPS antenna
- Wi-Fi and Bluetooth for updates and Insight Genesis mapping
No exploded diagram available for this product.
No compatible transducers listed for this product.
Display
| Screen size | 5 in |
| Resolution | 800 x 480 |
| Type | SolarMAX colour touchscreen, LED backlit |
Sonar
| Sonar support | CHIRP (Low/Med/High), DownScan Imaging; StructureScan HD and TotalScan compatible |
| CHIRP frequencies | 83/200 kHz, 455/800 kHz |
GPS
| Internal GPS | Built-in 10 Hz GPS antenna |
Charts
| Cartography | C-MAP and Insight, with Insight Genesis support |
Connectivity
| Wireless | Built-in Wi-Fi and Bluetooth |
| Networking | NMEA 2000 and NMEA 0183 |
| Card reader | microSD slot |
Electrical
| Supply voltage | 10 - 17 V DC |
No videos available for this product.
No frequently asked questions for this product.
