This product has been discontinued by Lowrance and is no longer available to buy.
Lowrance

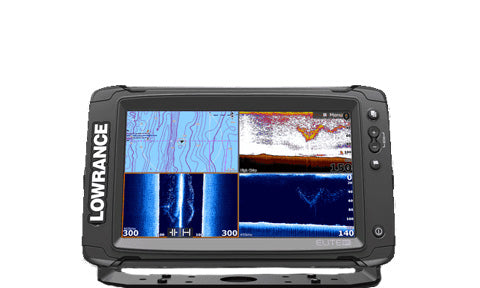

Lowrance Elite-9 Ti
Description
The Lowrance Elite-9 Ti is a discontinued 9-inch touchscreen fishfinder and chartplotter from the original Elite Ti series. It paired a high-resolution SolarMAX display with CHIRP sonar and DownScan Imaging, plus StructureScan HD and TotalScan transducer support, an internal high-speed GPS antenna and built-in C-MAP and Insight cartography.
Built-in Wi-Fi and Bluetooth allowed software updates and Insight Genesis custom mapping straight from the water. This SKU is the display only, supplied without a transducer.
The Elite-9 Ti has been replaced in the current Lowrance range by the Elite FS 9.
PRODUCT DETAILS
- 9-inch high-resolution SolarMAX touchscreen display
- CHIRP sonar plus DownScan Imaging
- StructureScan HD and TotalScan transducer support
- Internal high-speed GPS antenna
- Built-in C-MAP and Insight cartography
- Wi-Fi and Bluetooth for updates and Insight Genesis mapping
- Supplied as head unit only, no transducer
No exploded diagram available for this product.
No compatible transducers listed for this product.
Display
| Screen size | 9 in |
| Resolution | 800 x 480 |
| Type | SolarMAX colour touchscreen, LED backlit |
Sonar
| Sonar support | CHIRP (Low/Med/High), DownScan Imaging; StructureScan HD and TotalScan compatible |
| CHIRP frequencies | 83/200 kHz, 455/800 kHz |
GPS
| Internal GPS | Built-in 10 Hz GPS antenna |
Charts
| Cartography | C-MAP and Insight, with Insight Genesis support |
Connectivity
| Wireless | Built-in Wi-Fi and Bluetooth |
| Networking | NMEA 2000 and NMEA 0183 |
| Card reader | microSD slot |
Electrical
| Supply voltage | 10 - 17 V DC |
